ASRock check_circle In Stock Model: ASRock B450M-HDV R4.0

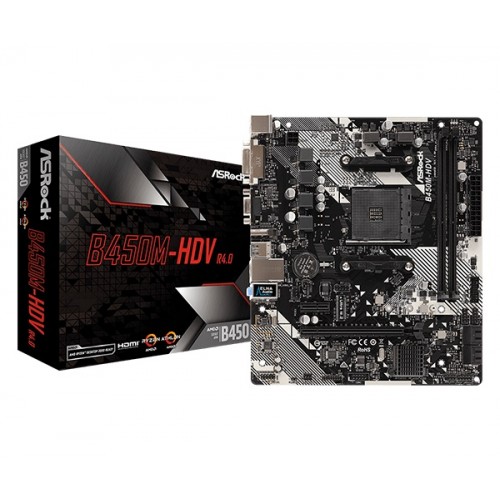

ASRock B450M-HDV R4.0 AMD Motherboard

Name: ASRock B450M-HDV R4.0 AMD Motherboard
Brand: ASRock
Price: 8400 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 128 views

Model: ASRock B450M-HDV R4.0
Memory 32 GB
AMD Promontory B450
Windows 10; 64-bit
1 PCIe 3.0 x16, 1 PCIe 2.0 x1

8,400৳

9,240৳

9% OFF

EMI starts at 275৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	- AMD AM4 Socket - Digi Power design - Supports CPU up to 105W
Chipset	- AMD Promontory B450
Form Factor	- Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support - SMBIOS 2.3 support

Expansion Slots

PCI	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot
M.2 Socket	- 1 x Screw for M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*

Memory

Type	- Dual Channel DDR4 Memory Technology
Slots	- 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots
Supported Memory	For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.

Graphics

- Max Shared memory supports up to 16GB
- The Max shared memory 16GB requires 32GB system memory installed.

Connector & Ports

HDMI	- 1 x HDMI Port
USB (s)	- 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s)	- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps
Internal I/O Ports	- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x TPM Header

Warranty Details

03 Years warranty

Description

The ASRock B450M-HDV R4.0 AMD Motherboard is engineered for AMD Ryzen processors, offering a compact yet powerful Micro-ATX solution for gaming, content creation, and professional workloads. Powered by the AMD Promontory B450 chipset, this motherboard supports up to 32GB of DDR4 RAM, ensuring fast and stable system performance. It features one PCIe 3.0 x16 slot, enabling high-speed graphics card support, while an additional PCIe 2.0 x1 slot allows for expansion cards and additional connectivity options. Designed for Windows 10 (64-bit) systems, it ensures seamless driver compatibility and optimal efficiency. ASRock’s premium components, including solid capacitors and high-quality audio components, enhance system durability and audio clarity. Its Micro-ATX form factor makes it a perfect fit for compact PC builds without compromising performance or expandability. Whether you're a casual gamer, PC enthusiast, or professional user, the ASRock B450M-HDV R4.0 delivers reliable performance, stable overclocking support, and essential connectivity features at an affordable price.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of ASRock B450M-HDV R4.0 AMD Motherboard?

The latest price of ASRock B450M-HDV R4.0 AMD Motherboard in Bangladesh is 8,400৳ You can buy the ASRock B450M-HDV R4.0 AMD Motherboard at best price from our Website or visit any of our showrooms.
