| Supported CPU | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT) |
| Chipset | Intel Z790 |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode - 1 x PCIe 3.0 x1 Slot (PCIE2) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire |
| Type | DDR4 |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Maximum Memory | 128GB |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| HDMI | 1 x HDMI Port |
| USB (s) | - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
| LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Intel I219V |
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes - 4 x SATA3 6.0 Gb/s Connectors |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports | - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header |
| Special Features | Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
| Warranty Details | 3 years |

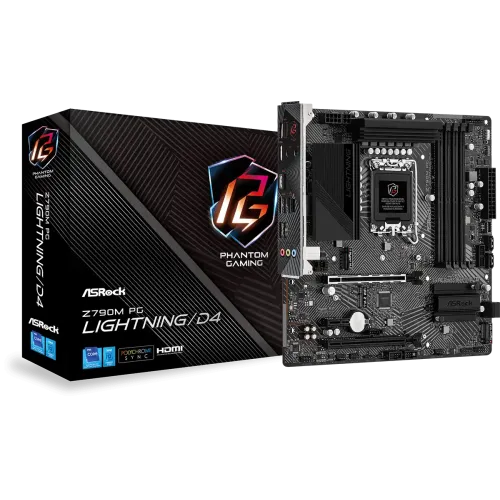

The latest price of ASRock Z790M PG Lightning/D4 Micro ATX Motherboard in Bangladesh is 0৳ You can buy the ASRock Z790M PG Lightning/D4 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
