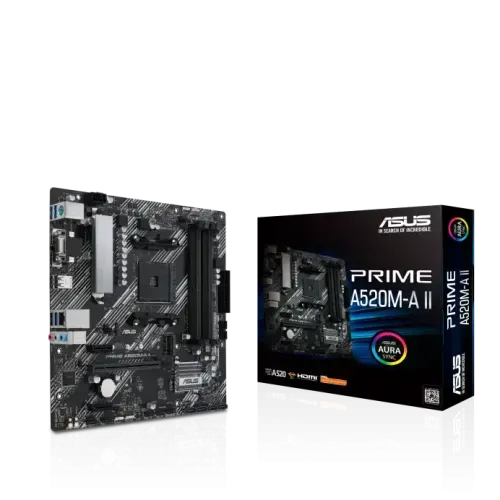

ASUS PRIME A520M-A II AM4 DDR4 Micro ATX Motherboard: A Compact and Reliable Solution for Ryzen Processors

The ASUS PRIME A520M-A II motherboard is a versatile and feature-packed option for AMD Ryzen processors. Built with modern connectivity, robust performance, and a microATX form factor, it’s designed to deliver seamless computing for home and office setups.

Overview

Designed for AMD Ryzen 5000, 4000, and 3000 Series Desktop Processors, the ASUS PRIME A520M-A II brings performance and flexibility to microATX builds. This motherboard offers advanced connectivity options like USB 3.2 Gen 1, PCIe 3.0, and SATA 6Gb/s, alongside ASUS-exclusive features for durability, cooling, and customization.

Key Features

Processor Compatibility

• Socket: AM4 socket for AMD Ryzen 5000, 4000, and 3000 Series Desktop Processors.
• Chipset: AMD A520 chipset for reliable performance and efficient power delivery.

Memory Support

• Type: DDR4 Dual Channel Memory Technology.
• Slots: 2 x DIMM slots.
• Capacity: Supports up to 128GB of un-buffered memory.
• Speeds: Compatible with memory speeds up to 4866MHz (OC).
• XMP Support: Intel Extreme Memory Profile (XMP) for memory tuning.

Graphics and Display

• Integrated Graphics Support: Graphics specifications vary based on processor.
• Display Ports:
  • 1 x HDMI port for high-definition displays.
  • 1 x DisplayPort.
  • 1 x D-Sub for legacy displays.

Storage and Expansion

• M.2 Slot:
  • 1 x M.2 slot supporting PCIe 3.0 x4 and SATA modes.
• SATA Ports:
  • 4 x SATA 6Gb/s ports with support for RAID 0, 1, and 10.
• Expansion Slots:
  • 1 x PCIe 3.0 x16 slot for GPUs.
  • 2 x PCIe 3.0 x1 slots for additional expansion cards.

Connectivity Options

• USB Ports:
  • Rear: 4 x USB 3.2 Gen 1 Type-A ports, 2 x USB 2.0 ports.
  • Front: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 ports), 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports).
• LAN: Realtek 1Gb Ethernet with ASUS LANGuard for improved network reliability.

Audio Features

• Audio Codec: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC.
• Premium Audio Features: Audio shielding, premium Japanese capacitors, and dedicated PCB layers for high-quality sound.

Customization and Aesthetics

• AURA Sync RGB: Includes AURA RGB headers and Addressable Gen 2 RGB headers for lighting customization.
• ASUS Armoury Crate: Manage and sync all your ASUS-compatible devices with Aura Sync and other tools.

Durability and Cooling

• ASUS 5X Protection III: Features like DIGI+ VRM, LANGuard, Overvoltage Protection, and SafeSlot Core ensure long-lasting reliability.
• Thermal Solutions: VRM heatsink design and Fan Xpert 2+ for efficient cooling.

Target Audience

The ASUS PRIME A520M-A II is ideal for budget-conscious builders looking for a feature-rich motherboard. Its microATX form factor suits compact builds, making it perfect for home users, casual gamers, and small office setups.

Reasons to Buy

1. AM4 compatibility for a wide range of Ryzen processors, including the latest 5000 Series.
2. Supports high-speed DDR4 memory up to 128GB for multitasking and productivity.
3. Integrated graphics with multiple display ports, including HDMI and DisplayPort.
4. Durable build with ASUS 5X Protection III for long-term reliability.
5. AURA Sync RGB for customizable aesthetics in your PC build.

Reasons Not to Buy

1. Limited to PCIe 3.0, which may not fully support next-gen GPUs and storage.
2. Lacks built-in Wi-Fi, requiring an additional adapter for wireless connectivity.

Price and Availability

The ASUS PRIME A520M-A II is backed by a 3-year warranty and is readily available through major online and retail stores at a competitive price. Its affordability and features make it a popular choice among budget-conscious PC builders.
