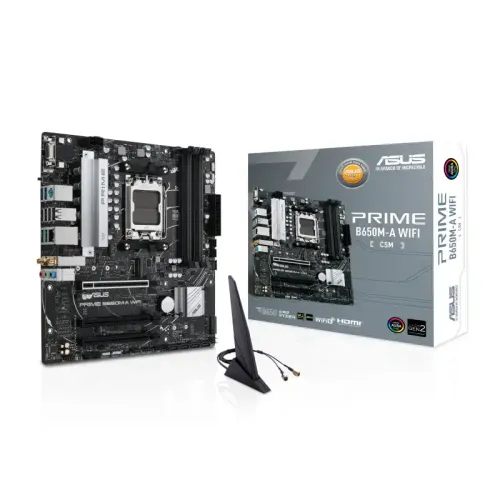

Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard

ASUS check_circle In Stock Model: PRIME B650M-A WIFI-CSM

Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard

Name: Asus PRIME B650M-A WIFI-CSM DDR5 AMD AM5 Micro-ATX Motherboard
Brand: ASUS
Price: 20200 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 45 views

Model: PRIME B650M-A WIFI-CSM
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 128GB, 5600(OC)
Graphics Output: 1x HDMI, 1x Display Port, 1 x VGA
Features: Realtek 2.5Gb Ethernet, Wi-Fi 6

20,200৳

25,000৳

19% OFF

EMI starts at 662৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset	AMD B650 Chipset
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)

Memory

Type	DDR5
Slots	4 DIMMs
Supported Memory	5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	128GB

Graphics

1 x DisplayPort**
1 x VGA port
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI	1x HDMI
USB (s)	Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others	Display Port (s) 1x DisplayPort VGA (s) 1 x VGA port

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Details

3 Years

Description

The Asus PRIME B650M-A WIFI-CSM DDR5 Micro-ATX Motherboard is designed to maximize efficiency and performance for users looking for a stable and high-performance AM5 platform. Supporting AMD Ryzen 8000 and 7000 Series processors, it delivers powerful processing capabilities for gaming, creative work, and productivity tasks.

Equipped with four DIMM slots, the motherboard allows for up to 128GB of DDR5 RAM, supporting speeds up to 5600MHz (OC) for ultra-fast data processing and multitasking. Its PCIe 4.0 slots ensure faster storage access and improved graphics performance, making it an ideal choice for modern gaming and professional applications.

For networking and connectivity, the PRIME B650M-A WIFI-CSM comes with Realtek 2.5Gb Ethernet for high-speed wired networking and integrated Wi-Fi 6 for seamless wireless connectivity, ensuring low latency, high-speed browsing, and smooth online gaming.

The motherboard features multiple display outputs including HDMI, DisplayPort, and VGA, providing flexibility for multi-monitor setups. With USB 3.2 and USB Type-C ports, users can enjoy fast data transfer speeds and broad device compatibility.

Built with ASUS 5X Protection III and an optimized cooling design, the PRIME B650M-A WIFI-CSM ensures long-term durability and stable performance. Whether you're a PC builder, gamer, or professional user, this motherboard delivers reliable power, efficient connectivity, and excellent expandability in a compact Micro-ATX form factor.
