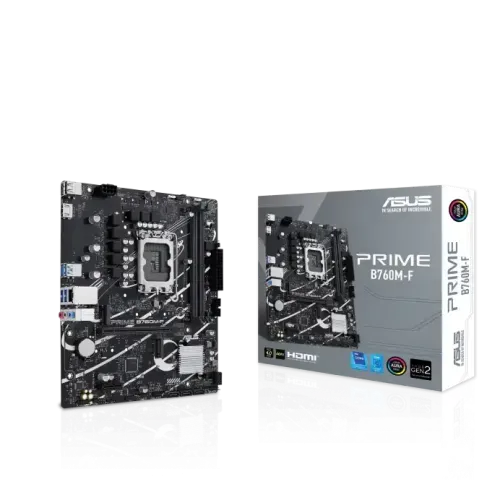

Asus PRIME B760M-F mATX DDR5 Motherboard

ASUS check_circle In Stock Model: PRIME B760M-F

Asus PRIME B760M-F mATX DDR5 Motherboard

Name: Asus PRIME B760M-F mATX DDR5 Motherboard
Brand: ASUS
Price: 14500 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 49 views

Model: PRIME B760M-F
Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 2 x DIMM, Max. 96GB, DDR5
Graphics Output: 1 x HDMI
Features: 1 x Realtek 1Gb Ethernet

14,500৳

17,200৳

16% OFF

EMI starts at 475৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
Form Factor	micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot
M.2 Socket	Total supports 2 x M.2 slots

Memory

Type	DDR5
Slots	2 x DIMM
Supported Memory	8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module
Maximum Memory	Max. 96GB

Graphics

** Supports 4K@30Hz as specified in HDMI 1.4.

Connector & Ports

HDMI	1x HDMI port
USB (s)	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Details

3 years warranty

Description

ASUS PRIME B760M-F DDR5 mATX Motherboard: Enhanced Performance for Intel 14th, 13th, and 12th Gen Processors

The ASUS PRIME B760M-F motherboard is built for users seeking next-generation performance in a compact mATX form factor. With DDR5 support, PCIe 4.0 slots, and robust ASUS-exclusive features, it caters to gamers, creators, and PC enthusiasts aiming for power and efficiency in their builds.

Overview

The ASUS PRIME B760M-F is a reliable and efficient motherboard, offering support for the latest Intel processors with LGA1700 sockets. Designed with DDR5 memory compatibility, advanced cooling solutions, and comprehensive connectivity, it provides a solid foundation for high-performance systems.

Its micro-ATX size ensures it fits in compact cases while still delivering cutting-edge performance for gaming, content creation, and multitasking.

Key Features

Processor and Memory Support

Supported CPUs: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
Memory:
- DDR5 support for up to 8000 MHz (OC).
- 2 DIMM slots supporting up to 96GB of RAM.
- Dual-channel architecture with Intel XMP support for optimal memory performance.

PCIe and Expansion Slots

1 x PCIe 4.0 x16 slot for high-performance GPUs.
1 x PCIe 4.0 x1 slot for additional expansion options.

Storage Options

2 x M.2 slots (PCIe 4.0 x4 mode) for ultra-fast NVMe SSDs.
4 x SATA 6Gb/s ports for traditional storage drives.
RAID support (RAID 0/1/5/10) via Intel Rapid Storage Technology.

Connectivity and Ports

Rear USB Ports (6 total):
- 4 x USB 5Gbps (Type-A).
- 2 x USB 2.0 (Type-A).
Front USB Ports (5 total):
- 1 x USB 5Gbps header (2 ports).
- 2 x USB 2.0 headers (3 ports).
Graphics Output: 1 x HDMI 1.4 (4K@30Hz).
Networking: Realtek 1Gb Ethernet for stable and fast connections.

Target Audience

The ASUS PRIME B760M-F is ideal for users seeking a balance of cutting-edge performance and compact design. It’s perfect for gamers, professionals, and PC builders creating a DDR5-powered system on a budget.

Reasons to Buy

Supports the latest Intel processors and DDR5 memory for next-gen performance.
Compact mATX form factor fits small to mid-sized cases.
Dual M.2 slots for ultra-fast storage and easy upgrades.
Reliable build quality with ASUS 5X PROTECTION III.
Customizable RGB lighting with Aura Sync compatibility.

Reasons Not to Buy

Limited to 2 DIMM slots, which may restrict future RAM upgrades.
No PCIe 5.0 support, which could impact long-term GPU upgrades.
No built-in Wi-Fi, requiring an additional adapter for wireless connectivity.
