| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel H770 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | DDR4 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Maximum Memory | Max. 128GB |
| Graphics | x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. |
| HDMI | 1 x HDMI |
| USB (s) | Rear USB (Total 8 ports) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | Display Port (s) 1 x DisplayPort |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Warranty Details | 3 years |

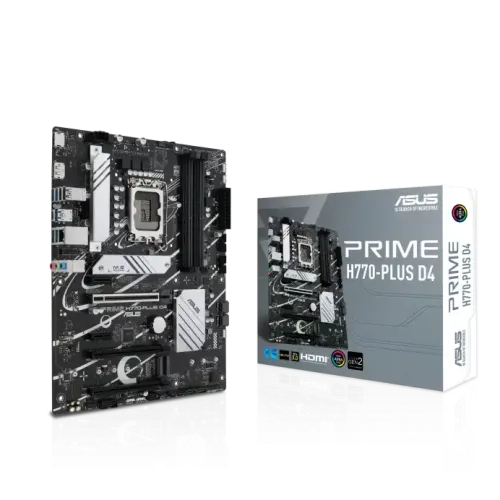

The ASUS PRIME H770-PLUS D4 ATX motherboard is a powerhouse designed for users who demand performance, stability, and future-proof connectivity. Built to support Intel’s 14th, 13th, and 12th Gen processors on the LGA 1700 socket, this motherboard offers exceptional speed and reliability, making it ideal for gaming, content creation, and professional workloads.
With support for up to 128GB of DDR4 memory across four DIMM slots, this motherboard ensures seamless multitasking and system stability. Overclocking capabilities up to 5066MHz (OC) provide an extra boost in speed, ideal for demanding applications and gaming setups.
For storage and expansion, the ASUS PRIME H770-PLUS D4 is equipped with PCIe 4.0 slots and high-speed M.2 connectivity, allowing for ultra-fast data transfer rates and enhanced storage performance. The inclusion of Realtek 2.5Gb Ethernet guarantees reliable and lag-free networking, making it perfect for online gaming, streaming, and professional tasks requiring high-speed internet connectivity.
The motherboard features multiple display outputs, including DisplayPort and HDMI, enabling a multi-monitor setup for productivity and immersive gaming experiences. Additionally, ASUS 5X Protection III ensures enhanced durability with high-quality components and comprehensive safeguards, providing long-term stability and peace of mind.
Whether you're a gamer, a content creator, or a professional looking for a feature-rich motherboard, the ASUS PRIME H770-PLUS D4 offers the perfect combination of performance, connectivity, and reliability.
The latest price of ASUS PRIME H770-PLUS D4 ATX Motherboard in Bangladesh is 0৳ You can buy the ASUS PRIME H770-PLUS D4 ATX Motherboard at best price from our Website or visit any of our showrooms.
