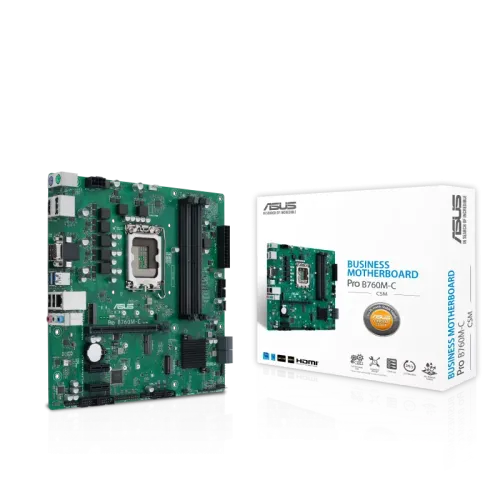

ASUS PRO B760M-C-CSM Micro-ATX Motherboard

ASUS check_circle In Stock Model: PRO B760M-C-CSM

ASUS PRO B760M-C-CSM Micro-ATX Motherboard

Name: ASUS PRO B760M-C-CSM Micro-ATX Motherboard
Brand: ASUS
Price: 16900 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 53 views

Model: PRO B760M-C-CSM
Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC)
Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI
Features: 1 x Intel 1Gb Ethernet

16,900৳

21,340৳

21% OFF

EMI starts at 554৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
BIOS	128Mb Flash ROM
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback

Expansion Slots

PCI	Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II
Maximum Memory	Max. 192GB

Graphics

2 x DisplayPort**
1 x VGA port
1 x HDMI port***
** Support max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI	1 x HDMI
USB (s)	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module	M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others	Display Port (s) 2 x DisplayPort VGA (s) 1 x VGA port

Others

Special Features	ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection
Bundled Software	ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE)

Warranty Details

3 years

Description

The ASUS PRO B760M-C-CSM Micro-ATX Motherboard is a powerful and reliable motherboard designed for business, enterprise, and professional applications. Built on the Intel B760 chipset, it supports 14th, 13th, and 12th Gen Intel processors, ensuring seamless performance for demanding workloads. With four DDR5 DIMM slots, it allows up to 192GB of high-speed memory at 6200MHz (OC), delivering exceptional speed and efficiency for multitasking.

For display versatility, this motherboard includes two DisplayPorts, one HDMI, and one VGA, making it compatible with multiple monitors for productivity setups. It also features Intel 1Gb Ethernet, providing a stable and secure network connection essential for business environments. Designed with ASUS 5X Protection III for enhanced durability, this motherboard offers comprehensive safeguards against electrical damage and overheating.

With CSM (Corporate Stable Model) support, it ensures long-term reliability, security, and IT manageability, making it an excellent choice for offices, corporate workstations, and enterprise solutions. Whether you're building a high-performance business PC or a professional workstation, the ASUS PRO B760M-C-CSM offers top-tier stability, efficiency, and longevity.
