| Supported CPU | Intel® LGA 1700 socket: Ready for 14th, 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel W680 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit |
| PCI | Intel® 13th & 12th Gen Processors - 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode) Intel® W680 Chipset - 2 x PCIe 3.0 x16 slots (supports x4 mode) - 1 x PCIe 3.0 x1 slot |
| M.2 Socket | Total supports 3 x M.2 slots |
| Type | DDR5 |
| Slots | 4 x DIMM |
| Supported Memory | DDR5 ECC and Non-ECC Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory | Max. 192GB |
| Graphics | supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
| HDMI | 2 x HDMI port |
| USB (s) | Rear USB (Total 8 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | 2 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Supported Storage | Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel W680 Chipset - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices) |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Audio | 5 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x BMC Header 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x Flexkey button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x M.2 slot (Key E) 1 x LPT_P80 Switch 1 x Thunderbolt header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | 1 x DisplayPort 1 x VGA port |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack button - BIOS FlashBack LED Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability |
| Bundled Software | Intel® vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey Intel® vPro support ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 FlexKey |
| Warranty Details | 3 years warranty |

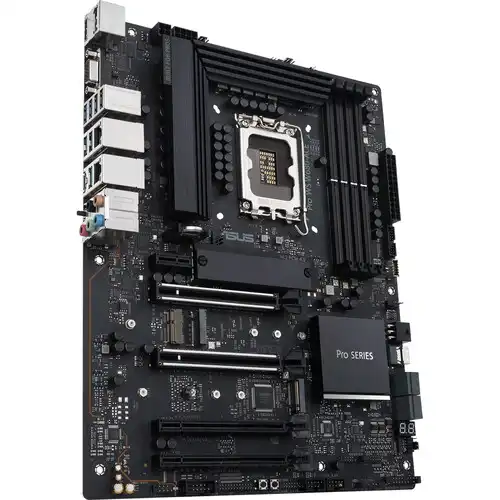

The Asus Pro WS W680-ACE ATX Motherboard is a premium workstation solution designed to meet the needs of professionals, content creators, and high-end computing environments. Built on the Intel W680 chipset, this motherboard supports 14th, 13th, and 12th Gen Intel Core processors via the LGA 1700 socket, delivering exceptional processing power for demanding applications.
Supporting up to 192GB of DDR5 memory across four DIMM slots, this motherboard ensures outstanding multitasking, data processing, and stability for workstation-level performance. Its dual Intel 2.5Gb Ethernet ports, equipped with ASUS LANGuard, provide ultra-fast, reliable networking, making it ideal for high-bandwidth applications and server-based workflows.
For graphics output, the Pro WS W680-ACE includes multiple display connectivity options, featuring 1 x DisplayPort, 2 x HDMI ports, and 1 x VGA port. This versatility enables seamless multi-monitor setups for productivity-focused users.
Designed for efficiency and reliability, the motherboard incorporates advanced cooling solutions and high-quality power components to ensure stable operation under heavy workloads. It also features PCIe expansion slots for GPU acceleration and additional storage or networking enhancements, making it a powerful choice for workstations, CAD design, video editing, and AI computing.
The Asus Pro WS W680-ACE is the ultimate motherboard for professionals seeking top-tier reliability, high-speed networking, and future-proof performance in an ATX form factor.
