| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor |
| Chipset | Intel B760 |
| Form Factor | M-ATX 245mm x 245mm |
| BIOS | 128M UEFI, supporting multiple languages |
| Audio | 5.1 Channel sound card |
| PCI | 1xPCIe 5.0 x16 slot 1xPCIe 3.0 x4 slot |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | - DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
| Maximum Memory | up to 192 GB of memory (a single socket can support up to 48 GB of memory) |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution 1 x DP 1.2 interface, supporting up to 4K 60Hz resolution |
| HDMI | 1x HDMI |
| LAN Port (s) | RTL8125 2.5Gbit network card |
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
| RAID | Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices |
| Internal I/O Ports | Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 2 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1 CPU fan pin - 3 system fan pins - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2 5V 3-pin ARGB pins - 2 12V 4-pin RGB pins - 1 Front audio pin - 1 Front panel pin - 1 speaker pin - 1 clear CMOS jumper - 1 serial port pin - 1 BIOS burner pin - 1 diagnostic card pin - 1 ME write protection jumper - 1 RGB lamp efficiency control jumper |
| Others | Display Port (s) 1x DisplayPort |
| Warranty Details | 3 years |

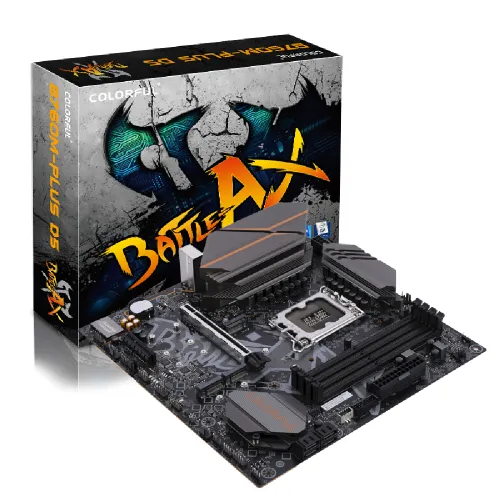

The Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard is engineered for powerful computing with support for Intel 14th, 13th, and 12th Gen processors on the LGA1700 socket. Designed to maximize performance, it features four DDR5 slots with a maximum capacity of 192GB and speeds up to 6800MHz (OC), ensuring blazing-fast responsiveness for gaming and productivity. The integrated RTL8125 2.5Gbit network card delivers ultra-low latency and high-speed internet connectivity, making it perfect for competitive gaming and seamless online experiences. Equipped with HDMI and DisplayPort outputs, this motherboard supports high-resolution displays for crystal-clear visuals. Its durable power phase design ensures stable performance even under heavy workloads. Compact yet powerful, the micro-ATX form factor allows for efficient space management without compromising features. Whether you're a gamer, a content creator, or an enthusiast looking for a reliable motherboard, the Colorful BATTLE-AX B760M-PLUS D5 V20 offers the best balance of performance, connectivity, and durability.
The latest price of Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard in Bangladesh is 17,700৳ You can buy the Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard at best price from our Website or visit any of our showrooms.
