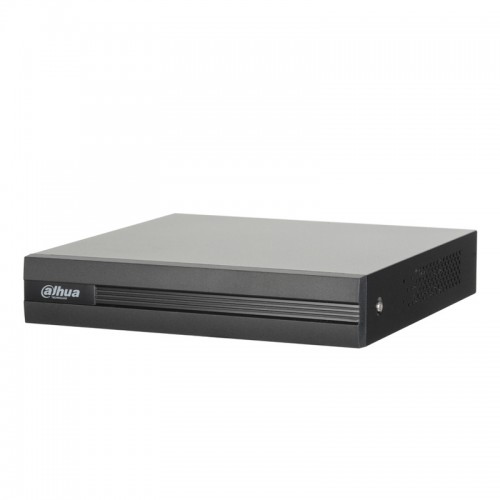

Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder

Dahua cancel Sold Out Model: DH-XVR1B16-I

Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder

Name: Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder
Brand: Dahua
Price: 5700 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 67 views

MPN: DH-XVR1B16-I
Model: XVR1B16-I
H.265+/H.265 dual-stream video compression
Supports Full-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 18 channels IP camera inputs

5,700৳

6,900৳

17% OFF

EMI starts at 187৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Audio and Video

IP Camera Input	16+2 channels, each channel up to 6MP
Two-Way Talk	Reuse audio in/out, RCA

Display

Interface	Main Processor Embedded processor Operating System Embedded linux Interface 1 HDMI; 1 VGA
Resolution	1920 × 1080, 1280 × 1024, 1280 × 720
Decoding Capacity	Multi-Screen Display When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16 OSD Camera title; Time; Video loss; Camera lock; Motion detection; Recording

Recording

Record Mode

Compression
AI Coding/H.265+/H.265/H.264+/H.264
Resolution
1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF
Record Rate
Main Stream:
the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps)

Sub stream:
CIF/QCIF (1 fps–7 fps)
Bit Rate
32 kbps–4096 kbps per channel
Record Mode
Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval
1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec

Video Detection And Alarm

Video Detection

Trigger Event
Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input
N/A
Relay Output
N/A

Playback And Backup

Search Mode	Sync Playback 1/4/9/16 Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode	USB Device/Network

Storage

Internal HDD	1 SATA port, up to 6 TB capacity
eSATA	N/A

Third Party Support

Network

Ethernet Port	Interface 1 RJ-45 Port (100 MB) Maximum User Access 128 users Interoperability ONVIF 16.12, CGI Conformant
Network Function	HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Smart Phone	iPhone; iPad; Android

Auxiliary Interface

USB	USB 2 USB ports (USB 2.0) RS232 N/A RS485 N/A

Power

Power Supply	DC 12V/2A
Power Consumption	< 10W Component Environment: Operational Conditions -10°C to +45°C (+14°F to +113°F), 10%–90% (RH) Storage Conditions -20°C to +70°C (-4°F to +158°F), 0%–90% (RH)

Construction

Dimensions	Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (10.24'' × 9.11'' × 1.87'')
Net Weight	0.89 kg (1.96 lb)
Gross Weight	1.42 kg (3.13 lb)

Warranty Information

Warranty

Description

Dahua XVR1B16-I 16-Channel Penta-brid Compact DVR – Smart Surveillance for Your Security Needs

Reliable 16-Channel DVR with AI-Powered Security

The Dahua XVR1B16-I is a 16-channel Penta-brid digital video recorder (DVR) designed for homes, offices, shops, and small businesses. It supports HDCVI, AHD, TVI, CVBS, and IP cameras, offering AI-based WizSense technology for smart motion detection. With H.265+ compression, it ensures efficient storage without compromising video quality.

Key Features & Benefits

✅ 16-Channel Video Input – Compatible with HDCVI, AHD, TVI, CVBS, and IP cameras.
✅ AI-Powered WizSense Technology – Human/vehicle motion detection for enhanced security.
✅ H.265+ Video Compression – Saves 50% more storage compared to H.264.
✅ 1080N & 720p Recording – Provides crisp and clear footage.
✅ HDMI & VGA Output – Ensures high-definition video playback.
✅ Remote Viewing via Mobile & PC – Monitor your premises anytime, anywhere.
✅ Secure Data Backup & Protection – Protects your recorded footage from loss.

Who Should Buy This?

✅ Homeowners & Small Business Owners – Perfect for shops, offices, and small security setups.
✅ Retail & Café Owners – Ideal for monitoring entrances, checkout counters, and parking areas.
✅ CCTV Installers & Security Professionals – A cost-effective solution for mid-range surveillance systems.

Who Should NOT Buy This?

❌ Large Enterprises & Factories – If you need higher capacity, consider 32 or 64-channel DVRs.
❌ 4K Ultra HD Users – For higher resolution, a 4K NVR is recommended.

Why Choose Dahua XVR1B16-I?

With Penta-brid compatibility, AI-powered motion detection, and remote access, the Dahua XVR1B16-I 16CH DVR is an excellent choice for budget-conscious users seeking a reliable surveillance system.

Limited Stock Available! Order Now from !

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder?

The latest price of Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder in Bangladesh is 5,700৳ You can buy the Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder at best price from our Website or visit any of our showrooms.
