Gigabyte check_circle In Stock Model: B450M DS3H WIFI

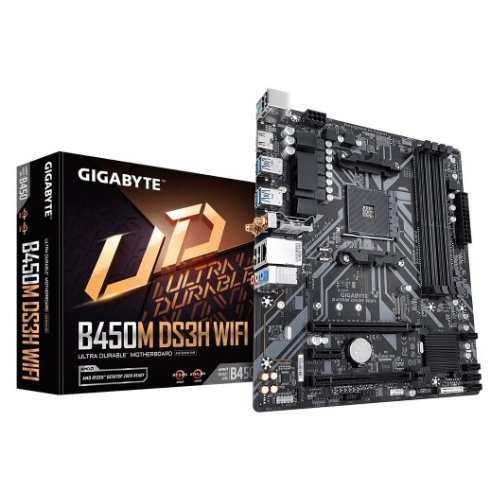

GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 17 views
  • Supported Processor: AMD Ryzen 5000/ 5000 G/ 3rd Gen / 2nd Gen / 1st Gen/ 2nd Gen
  • Supported Memory: Dual Channel DDR4, 4 DIMMs
  • Intel Dual Band 802.11ac WIFI & BT 4.2
  • High Quality Audio Capacitors
11,900৳
13,020৳
9% OFF
EMI starts at 390৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUAM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
(Please refer "CPU Support List" for more information.)
ChipsetAMD B450
Form FactorMicro ATX Form Factor; 24.4cm x 21.5cm
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
1 x PCI Express x1 slot
(The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Actual support may vary by CPU.
Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
Memory
TypeDual channel memory architecture
Slots4 x DDR4 DIMM sockets
Supported MemorySupport for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Maximum Memory128 GB
Graphics
GraphicsRadeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon
Connector & Ports
HDMI1 x HDMI port
USB (s)CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)Realtek GbE LAN chip (10/100/1000 Mbit)
Wireless Communication moduleWi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
Actual data rate may vary depending on environment and equipment.
Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Actual support may vary by CPU.
Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB LED strip header
2 x addressable LED strip headers
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special FeaturesSupport for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
cFosSpeed
Warranty Details
Warranty Details3 years
Description

GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard

The GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard is a reliable and budget-friendly platform for gamers, home users, students, and professionals looking to build or upgrade an AMD-based desktop. Powered by the proven AMD B450 chipset, this motherboard supports a wide range of AMD processors, including Ryzen 5000 Series, Ryzen 5000 G-Series, 3rd Gen Ryzen, 2nd Gen Ryzen, 1st Gen Ryzen, Athlon processors, and Ryzen processors with Radeon Vega Graphics. This broad compatibility makes it an excellent option for both new PC builds and affordable upgrades. Built in a compact Micro ATX form factor, the motherboard features four DDR4 DIMM slots supporting up to 128GB of memory with speeds up to 3600MHz (OC) for responsive multitasking and improved system performance. A PCIe 3.0 x16 slot provides stable graphics card support, while the M.2 PCIe/SATA SSD slot and four SATA 6Gb/s ports offer flexible storage expansion for faster boot times and sufficient storage capacity. For everyday connectivity, the motherboard includes integrated WiFi, Bluetooth 4.2, Gigabit LAN, USB 3.1 Gen 1 ports, HDMI output, high-definition Realtek audio with S/PDIF support, and RGB lighting headers for system customization. GIGABYTE also provides practical utilities such as Q-Flash, APP Center, EasyTune, Smart Backup, RGB Fusion, and Fast Boot, making installation, system tuning, and maintenance simple for users of all experience levels. Whether you're building a budget gaming PC, office workstation, or home computer, the GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard delivers dependable performance, excellent compatibility, and long-term reliability. Available at UCP, it comes backed by a 3-Year Manufacturer Warranty for complete peace of mind.

Key Benefits of GIGABYTE B450M DS3H WIFI Motherboard

1. Wide Compatibility with AMD Ryzen Processors

Supporting AMD Ryzen 5000 Series, Ryzen G-Series, 3rd Gen, 2nd Gen, 1st Gen Ryzen, and Athlon processors, this motherboard provides excellent flexibility for both new builds and system upgrades.

2. Fast DDR4 Memory Performance

Featuring four DDR4 DIMM slots supporting up to 128GB of memory and speeds up to 3600MHz (OC), it delivers smooth multitasking, faster application performance, and reliable everyday computing.

3. Built-in WiFi and Reliable Connectivity

Integrated WiFi, Bluetooth 4.2, Gigabit Ethernet, USB 3.1 Gen 1 ports, and HDMI output provide stable networking and convenient connectivity for modern peripherals and displays.

4. Flexible Storage Expansion

With an M.2 PCIe/SATA SSD slot, four SATA 6Gb/s ports, and RAID support, users can enjoy faster storage performance while maintaining plenty of space for games, applications, and media files.

5. Easy PC Building and System Management

GIGABYTE enhances the user experience with Q-Flash, APP Center, EasyTune, RGB Fusion, Smart Backup, Fast Boot, and hardware monitoring features, making system setup and maintenance simple and efficient.

The GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard is an excellent choice for users seeking an affordable and dependable AMD motherboard with modern wireless connectivity. Featuring the AMD B450 chipset, support for Ryzen 5000 Series processors, up to 128GB DDR4 memory, integrated WiFi, Bluetooth 4.2, M.2 SSD support, Gigabit LAN, HDMI output, RGB Fusion lighting, and comprehensive system management tools, it offers outstanding value for gaming, productivity, and everyday computing. Order yours today from UCP and enjoy reliable performance backed by a 3-Year Manufacturer Warranty.

Reviews (0)
0
☆☆☆☆☆ No reviews yet
Q&A (0)

What is the price of GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard?

The latest price of GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard in Bangladesh is 11,900৳ You can buy the GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
