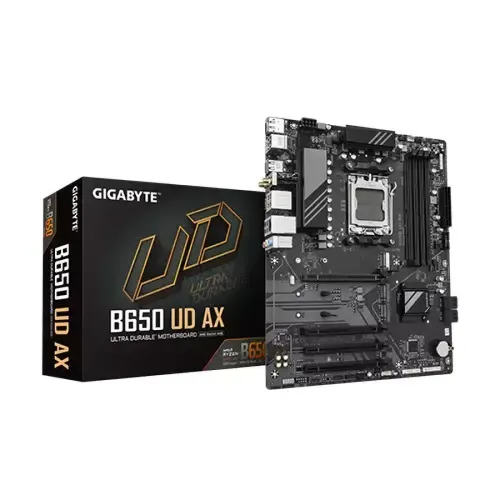

GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard

Gigabyte check_circle In Stock Model: B650 UD AX

GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard

Name: GIGABYTE B650 UD AX AMD AM5 DDR5 ATX Motherboard
Brand: Gigabyte
Price: 19800 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 19 views

Supported CPU: Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Supported Memory: 4 x DDR5 8000(OC) Max. 256GB
Graphics Output: 1 x DisplayPort, 1 x HDMI port
Feature: BT 5.0, WIFI 6, Realtek RTL8111H GbE LAN

19,800৳

21,590৳

8% OFF

EMI starts at 649৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD B650 Chipset
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC ALC897 High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1
* The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen 8000 Series-Phoenix 2 processor is used.
1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

M.2 Socket

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory	supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI	1 x HDMI
USB (s)	CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek RTL8111H GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Realtek RTL8851 WIFI 6 module - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - Support for 11ac wireless standard BT 5.0
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 1 x addressable RGB Gen2 LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Support for Q-Flash
Support for Q-Flash Plus

I/O Controller: iTE I/O Controller Chip

H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install

Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty Details

3 Years

Description

GIGABYTE B650 UD AX DDR5 AMD AM5 ATX Motherboard

The GIGABYTE B650 UD AX DDR5 AMD AM5 ATX Motherboard is designed to deliver dependable performance, advanced connectivity, and excellent upgrade potential for gamers, content creators, and PC enthusiasts. Powered by the AMD B650 chipset, this motherboard supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, providing a reliable platform for modern gaming, multitasking, streaming, and professional workloads. Built with the latest DDR5 memory technology, the motherboard supports up to 256GB of RAM with overclocking speeds reaching 8000MT/s (OC), ensuring faster responsiveness, improved productivity, and smooth gaming experiences. Its PCIe 5.0 M.2 slot enables blazing-fast NVMe SSD performance, while three M.2 slots and four SATA ports provide flexible storage expansion for growing system requirements. For seamless connectivity, the motherboard features integrated WiFi 6, Bluetooth 5.0, Gigabit LAN, USB 3.2 Gen 2 Type-A ports, USB Type-C connectivity, and multiple high-speed USB ports for peripherals and external storage. DisplayPort and HDMI outputs support high-resolution displays when paired with compatible AMD Ryzen processors featuring integrated graphics. Additional features such as Q-Flash Plus, GIGABYTE Control Center, Smart Fan technology, RGB lighting headers, and comprehensive hardware monitoring make building and maintaining your PC simple and efficient. Whether you're building a gaming PC, upgrading your workstation, or assembling a reliable desktop for daily productivity, the GIGABYTE B650 UD AX DDR5 AMD AM5 ATX Motherboard offers an outstanding balance of performance, stability, and future-ready features. Available at UCP, it comes backed by a 3-Year Manufacturer Warranty for long-term peace of mind.

Key Benefits of GIGABYTE B650 UD AX DDR5 Motherboard

1. Supports the Latest AMD Ryzen Processors

Built on the AMD AM5 platform, this motherboard is compatible with Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, ensuring excellent performance today with support for future CPU upgrades.

2. High-Speed DDR5 Memory and PCIe 5.0 Storage

Support for up to 256GB DDR5 memory at speeds of 8000MT/s (OC) and a PCIe 5.0 M.2 SSD slot delivers faster boot times, improved multitasking, and enhanced gaming and content creation performance.

3. Reliable Networking with WiFi 6

Integrated WiFi 6, Bluetooth 5.0, and Gigabit Ethernet provide stable wireless connectivity, faster downloads, low-latency gaming, and dependable wired networking for everyday use.

4. Flexible Expansion and Storage

Featuring three M.2 PCIe slots, four SATA ports, multiple PCIe expansion slots, RAID support, and extensive internal headers, this motherboard offers excellent flexibility for storage upgrades and future expansion.

5. Easy PC Building with Smart Features

GIGABYTE enhances the user experience with Q-Flash Plus, GIGABYTE Control Center, Smart Fan controls, RGB lighting support, comprehensive hardware monitoring, and durable components for reliable long-term operation.

The GIGABYTE B650 UD AX DDR5 AMD AM5 ATX Motherboard is an excellent choice for users looking to build a high-performance AMD desktop with reliable connectivity and future-ready features. Featuring the AMD B650 chipset, support for Ryzen 9000/8000/7000 Series processors, DDR5 memory up to 256GB, PCIe 5.0 M.2 storage, triple M.2 slots, WiFi 6, Gigabit LAN, USB Type-C connectivity, and advanced cooling support, it delivers outstanding value for gaming, productivity, and everyday computing. Order yours today from UCP and enjoy dependable performance backed by a 3-Year Manufacturer Warranty.
