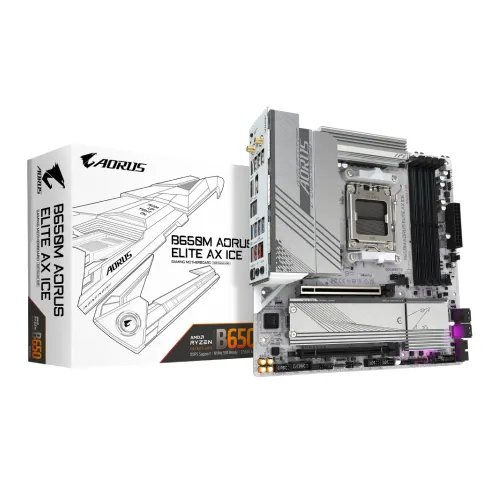

GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard

Gigabyte check_circle In Stock Model: B650M AORUS ELITE AX ICE

GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard

Name: GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard
Brand: Gigabyte
Price: 27800 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 17 views

Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 256GB, 8000MT/s (OC)
Graphics Output: 1x Display Port, 1 x HDMI
Features: Realtek 2.5GbE LAN & AMD Wi-Fi 6E, Bluetooth 5.3

27,800৳

30,270৳

8% OFF

EMI starts at 911৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset	AMD B650
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

M.2 Socket

2 x M.2

Memory

Type	DDR5
Slots	4 x DDR5 DIMM
Supported Memory	Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	256GB

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

Connector & Ports

HDMI	1x HDMI
USB (s)	CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

Others

Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 Years

Description

GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard

The GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard is a premium Micro ATX motherboard engineered for gamers, PC enthusiasts, and professional users who demand powerful performance and reliable connectivity. Built on the AMD B650 chipset, it supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, delivering a future-ready platform for gaming, streaming, content creation, and demanding productivity tasks. Designed to maximize next-generation hardware performance, the motherboard supports up to 256GB of DDR5 memory with speeds reaching 8000MT/s (OC), enabling faster multitasking, smoother gameplay, and improved system responsiveness. A PCIe 5.0 M.2 slot provides ultra-fast NVMe SSD performance, while the PCIe 4.0 x16 graphics slot ensures excellent compatibility with modern graphics cards for immersive gaming and creative workloads. Connectivity is equally impressive with integrated Wi-Fi 6E, Bluetooth 5.3, Realtek 2.5GbE LAN, USB 3.2 Gen2 Type-C, multiple USB ports, HDMI 2.1, and DisplayPort 1.4 support. Dual M.2 SSD slots, RAID support, RGB lighting headers, advanced cooling options, and GIGABYTE's Q-Flash Plus and Control Center software make building, upgrading, and maintaining your PC easier than ever. Whether you're building a clean white-themed gaming PC or a powerful workstation, the GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard delivers premium performance, excellent expandability, and dependable stability. Available at UCP, it comes backed by a 3-Year Manufacturer Warranty for complete peace of mind.

Key Benefits of GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard

1. Built for the Latest AMD Ryzen AM5 Processors

Supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this motherboard provides outstanding processing power and long-term upgrade flexibility for gaming and professional applications.

2. High-Speed DDR5 Memory and PCIe 5.0 Storage

Support for up to 256GB DDR5 RAM with speeds up to 8000MT/s (OC) and a PCIe 5.0 M.2 SSD slot ensures exceptional system responsiveness, faster boot times, and superior multitasking performance.

3. Advanced Networking with Wi-Fi 6E

Integrated Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb Ethernet provide fast wireless connectivity, low-latency online gaming, stable streaming, and reliable high-speed networking.

4. Flexible Expansion and Premium Connectivity

Dual M.2 SSD slots, four SATA ports, PCIe expansion, HDMI 2.1, DisplayPort 1.4, USB 3.2 Gen2 Type-C, and numerous USB ports offer excellent flexibility for storage, displays, and modern peripherals.

5. Easy Building with Premium GIGABYTE Features

Features such as Q-Flash Plus, GIGABYTE Control Center, RGB lighting headers, advanced cooling support, RAID compatibility, and durable components simplify system assembly while ensuring long-term reliability.

The GIGABYTE B650M AORUS ELITE AX ICE DDR5 AMD AM5 mATX Motherboard is an outstanding choice for users seeking premium features, reliable performance, and next-generation connectivity. With AMD B650 chipset support, compatibility with Ryzen 9000/8000/7000 Series processors, up to 256GB DDR5 memory, PCIe 5.0 NVMe storage, dual M.2 slots, Wi-Fi 6E, Bluetooth 5.3, Realtek 2.5GbE LAN, HDMI 2.1, DisplayPort 1.4, and advanced cooling support, it is ready to power high-performance gaming and productivity systems. Order yours today from UCP and enjoy dependable performance backed by a 3-year manufacturer warranty.
