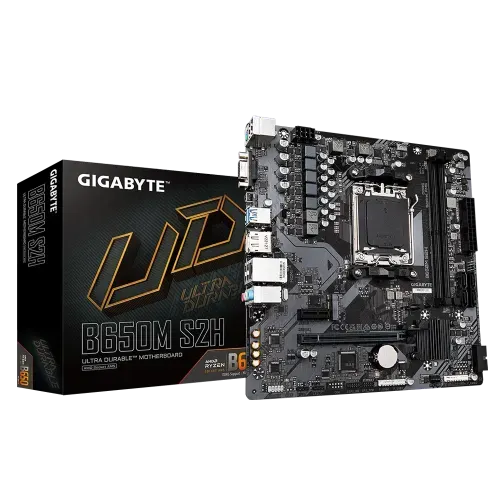

GIGABYTE B650M S2H AM5 Micro-ATX DDR5 Motherboard

Gigabyte check_circle In Stock Model: B650M S2H

GIGABYTE B650M S2H AM5 Micro-ATX DDR5 Motherboard

Name: GIGABYTE B650M S2H AM5 Micro-ATX DDR5 Motherboard
Brand: Gigabyte
Price: 13800 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 131 views

Model: B650M S2H
Supported CPU: Ryzen 8000 & 7000 Series Processors for Socket AM5
Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
Graphics Output: 1 x DisplayPort, 1 x HDMI, 1 x D-Sub
Features: Realtek GbE LAN chip

13,800৳

16,900৳

18% OFF

EMI starts at 452৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5, support for: AMD Ryzen™ 8000 & 7000 Series Processors
Chipset	AMD B650
Form Factor	Micro ATX Form Factor; 23.0cm x 22.5cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type	DDR5
Slots	2 x DIMM
Supported Memory	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 96 GB (48 GB single DIMM capacity)

Graphics

Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Connector & Ports

HDMI	1 x HDMI \| 1 x DisplayPort \| 1 x D-Sub port
USB (s)	CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 Years

Description

GIGABYTE B650M S2H AM5 Micro-ATX DDR5 Motherboard Price in Bangladesh

Overview

The GIGABYTE B650M S2H AM5 Micro-ATX DDR5 Motherboard is an affordable yet powerful motherboard designed for users building compact systems with AMD Ryzen 7000 or 8000 series processors. Featuring DDR5 memory support, PCIe 4.0, and robust storage options, this motherboard balances performance and reliability, making it a great choice for everyday computing and entry-level gaming.

Performance and Features

CPU and Memory

Processor Support: Supports AMD Ryzen 7000 and 8000 series processors, ensuring smooth and responsive performance.
Memory:
- DDR5 support with 2 DIMM slots and a maximum capacity of 96GB.
- Overclockable speeds up to 6400 MT/s for enhanced performance.
- Compatible with AMD EXPO™ and XMP profiles for effortless overclocking.

Expansion and Storage

PCIe Slots:
- 1 x PCIe 4.0 x16 slot for graphics cards or high-performance NVMe SSDs.
- 1 x PCIe 3.0 x1 slot for additional expansion cards.
Storage Options:
- 1 x M.2 slot (PCIe 4.0 x4) for ultra-fast SSDs.
- 4 x SATA 6Gb/s connectors for additional storage drives.
RAID Support: RAID 0, 1, and 10 for both NVMe and SATA storage devices to boost performance and data redundancy.

Design and Durability

Form Factor: Compact Micro-ATX design (23.0cm x 22.5cm), ideal for space-constrained builds without compromising on features.
Solid Build: Engineered for stability and long-term reliability, featuring premium components.

User-Friendly Features and Software

Connectivity

USB Ports:
- Rear Panel:
  - 2 x USB 3.2 Gen 1.
  - 3 x USB 2.0/1.1.
- Internal Headers:
  - 2 x USB 3.2 Gen 1.
  - 4 x USB 2.0/1.1.
Networking: Realtek GbE LAN offers reliable wired networking at speeds up to 1 Gbps.

Graphics and Audio

Graphics Outputs:
- 1 x D-Sub port (1920x1200@60Hz).
- 1 x DisplayPort (3840x2160@144Hz).
- 1 x HDMI port for additional display options.
Audio: Powered by Realtek High Definition Audio CODEC, supporting up to 7.1-channel surround sound for an immersive experience.

Why Choose GIGABYTE B650M S2H?

Budget-Friendly Performance: Affordable yet powerful for everyday tasks and entry-level gaming.
Compact Design: Micro-ATX size fits smaller cases, perfect for compact builds.
DDR5 Support: Faster, more efficient memory with overclocking capabilities.
Versatile Storage Options: Supports both M.2 NVMe and SATA drives with RAID configurations.
