Gigabyte check_circle In Stock Model: B760M D3HP WIFI6

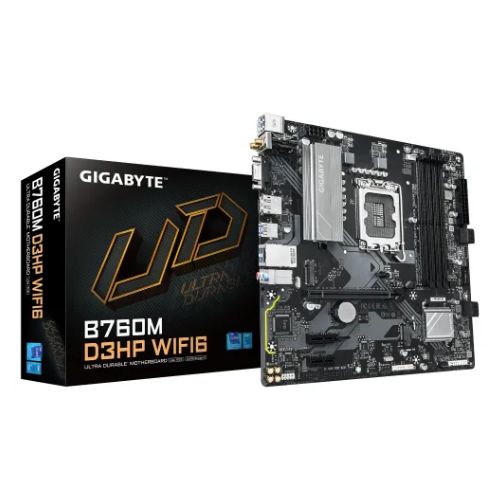

GIGABYTE B760M D3HP WIFI6 DDR5 Micro ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 12 views
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 256GB 5600
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
  • Features: Realtek GbE LAN, Wi-Fi 6, BLUETOOTH 5.3
18,800৳
20,510৳
8% OFF
EMI starts at 616৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
ChipsetIntel B760 Express Chipset
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Others
Expansion Slots
PCICPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.


Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
M.2 Socket
Others
Memory
TypeDDR5
Slots4
Supported MemorySupport for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum MemorySupporting up to 256 GB (64 GB single DIMM capacity) of system memory
Others
Graphics
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support for native HDMI 2.1 TMDS compatible ports.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Support for DisplayPort 1.2 version and HDCP 2.3
Others
Connector & Ports
HDMI1 x HDMI port
USB (s)Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication moduleRealtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
Supported Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O PortsInternal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
OthersDisplay Port (s): 1 x DisplayPort
D-Sub (s): 1 x D-Sub port
Others
Special FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Details
Warranty Details3 years Warranty
others
Description

GIGABYTE B760M D3HP WIFI6 DDR5 Micro ATX Motherboard – Built for High-Speed Performance

If you're planning to build a powerful Intel-based desktop with next-generation memory and reliable connectivity, the GIGABYTE B760M D3HP WIFI6 DDR5 Micro ATX Motherboard is an outstanding choice. Designed around the Intel B760 Express Chipset, this motherboard supports 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors, making it ideal for gaming, content creation, business, and everyday computing. Whether you're upgrading an older PC or assembling a new system, this motherboard offers the performance, stability, and expandability required for modern workloads.

One of its biggest advantages is support for DDR5 memory up to 256GB, delivering significantly higher bandwidth and faster responsiveness than previous DDR generations. The dual PCIe 4.0 M.2 slots allow blazing-fast NVMe SSD performance for quicker boot times, faster application loading, and improved workflow efficiency. Gamers will also appreciate the PCIe 4.0 x16 slot, which provides the bandwidth needed for today's powerful graphics cards. Connectivity is another highlight. Built-in WiFi 6, Bluetooth 5.3, Gigabit LAN, HDMI 2.1, DisplayPort, USB 3.2 Gen 1, and USB Type-C support ensure seamless compatibility with modern devices and high-speed networks. Multiple fan headers, RGB lighting support, and GIGABYTE's Q-Flash Plus technology make installation and future upgrades easy, even for first-time PC builders. If you're searching for the GIGABYTE B760M D3HP WIFI6 DDR5 Price in BD, UCP offers genuine products with official warranty, competitive pricing, and trusted after-sales support. Combining next-generation DDR5 technology, WiFi 6 connectivity, and premium GIGABYTE reliability, this motherboard is an excellent investment for anyone building a future-ready desktop.

Key Benefits of GIGABYTE B760M D3HP WIFI6 Motherboard

1. Next-Generation Intel Performance

Supporting Intel 14th, 13th, and 12th Generation processors allows you to build a system capable of handling gaming, streaming, professional software, programming, and multitasking with exceptional stability. This flexibility also provides an easier upgrade path for future Intel CPUs.

2. DDR5 Memory for Faster Productivity

The motherboard supports up to 256GB DDR5 RAM across four DIMM slots with dual-channel architecture and XMP compatibility. Faster memory speeds improve gaming performance, reduce rendering times, enhance multitasking, and create a smoother computing experience for demanding users.

3. Ultra-Fast Storage and Expansion

With two PCIe 4.0 M.2 slots, users enjoy significantly faster SSD performance compared to traditional SATA drives. Applications launch quickly, Windows boots in seconds, and large files transfer rapidly. Four SATA ports and RAID support provide additional flexibility for high-capacity storage solutions.

4. Reliable Wireless and Wired Connectivity

Integrated WiFi 6, Bluetooth 5.3, and Gigabit Ethernet deliver fast, stable internet connectivity whether you're gaming online, attending virtual meetings, downloading large files, or streaming 4K content. Multiple USB ports, HDMI 2.1, DisplayPort, and USB Type-C support make connecting modern peripherals effortless.

5. Easy Installation and Long-Term Reliability

Features such as Q-Flash Plus, GIGABYTE Control Center, RGB headers, multiple fan connectors, and premium BIOS support simplify installation and maintenance. Combined with GIGABYTE's renowned build quality and a 3-year manufacturer warranty, users can build with confidence knowing their system is designed for long-term performance and stability.

Reviews (0)
0
☆☆☆☆☆ No reviews yet
Q&A (0)

What is the price of GIGABYTE B760M D3HP WIFI6 DDR5 Micro ATX Motherboard?

The latest price of GIGABYTE B760M D3HP WIFI6 DDR5 Micro ATX Motherboard in Bangladesh is 18,800৳ You can buy the GIGABYTE B760M D3HP WIFI6 DDR5 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
