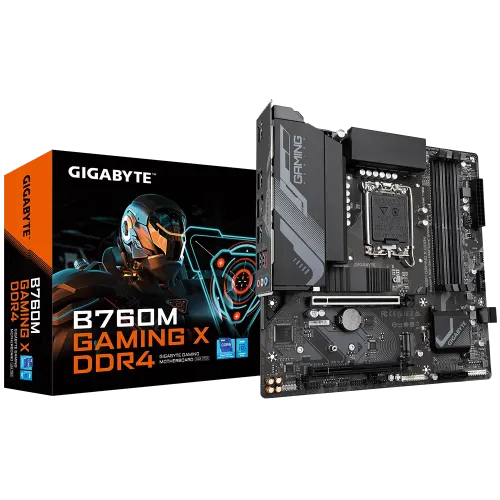

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

Gigabyte check_circle In Stock Model: B760M GAMING X DDR4

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

Name: GIGABYTE B760M GAMING X DDR4 mATX Motherboard
Brand: Gigabyte
Price: 19000 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 96 views

Model: B760M GAMING X DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip

19,000৳

19,530৳

3% OFF

EMI starts at 623৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

Expansion Slots

PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors

Memory

Type	DDR4
Slots	4
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB

Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Connector & Ports

HDMI	1x HDMI
USB (s)	1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1 x front panel audio header 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others	1x DisplayPort

Others

Special Features

2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus

Warranty Details

3 years

Description

The GIGABYTE B760M GAMING X DDR4 Micro-ATX Motherboard is built for gamers, content creators, and PC enthusiasts looking for a powerful and efficient motherboard with exceptional performance, durability, and connectivity. Designed to support Intel's 14th, 13th, and 12th Gen processors, this motherboard utilizes the B760 chipset to deliver next-gen gaming experiences and high-speed computing.

Equipped with four DDR4 DIMM slots, the B760M GAMING X DDR4 supports up to 128GB of RAM with speeds of 5333MHz (OC). This allows for seamless multitasking, faster game loading times, and improved system responsiveness, making it an ideal choice for competitive gaming, content creation, and high-performance applications.

For graphics output, this motherboard includes 1x HDMI and 1x DisplayPort, enabling high-resolution video output and multi-monitor support. Whether you're gaming in 4K, editing videos, or working with high-end applications, the B760M GAMING X DDR4 provides crisp visuals and smooth performance.

In terms of networking, this motherboard is equipped with a Realtek 2.5GbE LAN chip, delivering ultra-fast and stable wired connections for lag-free online gaming, high-speed downloads, and uninterrupted streaming. The enhanced thermal design ensures that the system remains cool and stable, even under intense workloads or overclocking scenarios.

Built with GIGABYTE’s Ultra Durable components, the B760M GAMING X DDR4 features high-quality capacitors, enhanced PCB layers, and superior power delivery, making it highly reliable and long-lasting. The motherboard’s reinforced PCIe slots and optimized layout further enhance performance and stability, ensuring that your gaming rig or workstation runs at peak efficiency.

If you’re looking for a versatile, high-performance Micro-ATX motherboard with next-generation gaming and connectivity features, the GIGABYTE B760M GAMING X DDR4 is an excellent choice for building a powerful, future-ready gaming PC or workstation.
