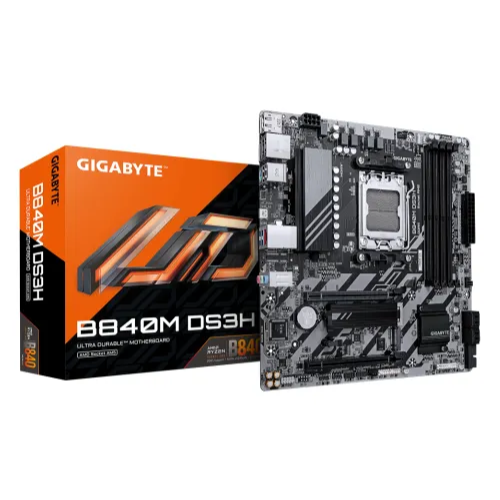

Gigabyte B840M DS3H AM5 mATX Motherboard

Gigabyte check_circle In Stock Model: B840M DS3H

Gigabyte B840M DS3H AM5 mATX Motherboard

Name: Gigabyte B840M DS3H AM5 mATX Motherboard
Brand: Gigabyte
Price: 18300 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 21 views

Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
Graphics Output: 2x Display Port, 1 x HDMI
Features: 2x M.2 Slot, Realtek GbE LAN

18,300৳

19,960৳

8% OFF

EMI starts at 600৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Chipset	AMD B840
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Others

Expansion Slots

PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:
Others

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory
Others

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.

Support for up to triple-display at the same time

Others

Connector & Ports

HDMI	1 x HDMI port
USB (s)	USB CPU: - 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Supported Storage	1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
Others	Display Port (s): 2 x DisplayPort

Others

Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)

Warranty Details

Warranty Details	3 Year
others

Description

Gigabyte B840M DS3H AMD AM5 DDR5 mATX Motherboard

The Gigabyte B840M DS3H AMD AM5 DDR5 mATX Motherboard is designed to deliver dependable performance, modern connectivity, and excellent upgrade flexibility for gamers, content creators, and everyday PC users. Powered by the latest AMD B840 chipset, this motherboard supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, providing a stable platform for gaming, multitasking, office work, and professional applications. Built with support for up to 256GB of DDR5 memory running at speeds of up to 8200MT/s (OC), the motherboard offers exceptional memory bandwidth for smoother multitasking, faster application performance, and improved gaming responsiveness. Dual PCIe 4.0 M.2 slots ensure ultra-fast NVMe SSD performance, while the PCIe 4.0 x16 graphics slot provides reliable support for the latest graphics cards. The motherboard also features Realtek 2.5GbE LAN, multiple display outputs including HDMI 2.1 and dual DisplayPort 1.4, high-speed USB Type-C connectivity, comprehensive cooling headers, and RGB lighting support to help users build a clean and efficient modern PC. GIGABYTE's Q-Flash Plus, Smart Backup, and Control Center software simplify BIOS updates, system tuning, and overall system management. Whether you're building a reliable gaming PC, a home workstation, or an everyday productivity system, the Gigabyte B840M DS3H AMD AM5 DDR5 mATX Motherboard offers excellent value, dependable performance, and long-term compatibility. Available at UCP, it comes backed by a 3-Year Manufacturer Warranty for added peace of mind.

Key Benefits of Gigabyte B840M DS3H Motherboard

1. Supports Latest AMD Ryzen AM5 Processors

Compatible with AMD Ryzen 9000, 8000, and 7000 Series desktop processors, the motherboard provides a future-ready AM5 platform for gaming, content creation, and professional workloads.

2. High-Speed DDR5 Memory Performance

Featuring four DDR5 DIMM slots supporting up to 256GB and memory speeds reaching 8200MT/s (OC), users can enjoy faster multitasking, improved productivity, and enhanced gaming performance.

3. Fast PCIe 4.0 Storage and Graphics

The PCIe 4.0 x16 graphics slot combined with dual PCIe 4.0 M.2 NVMe SSD slots delivers faster loading times, responsive system performance, and efficient storage expansion for modern applications.

4. Reliable Connectivity for Everyday Computing

With Realtek 2.5Gb Ethernet, USB Type-C, HDMI 2.1, dual DisplayPort outputs, multiple USB ports, and support for up to three displays, this motherboard provides excellent connectivity for work and entertainment.

5. Easy System Building with GIGABYTE Features

Q-Flash Plus enables BIOS updates without installing a CPU, while GIGABYTE Control Center, Smart Backup, RGB headers, multiple cooling fan connectors, and premium build quality ensure a reliable and user-friendly PC building experience.

The Gigabyte B840M DS3H AMD AM5 DDR5 mATX Motherboard is an excellent choice for users seeking a reliable, feature-rich, and affordable AM5 motherboard. Featuring the AMD B840 chipset, support for Ryzen 9000/8000/7000 Series processors, up to 256GB DDR5 memory, PCIe 4.0 graphics, dual M.2 NVMe SSD slots, HDMI 2.1, dual DisplayPort, 2.5GbE LAN, and comprehensive cooling support, it provides everything needed for a high-performance desktop. Order yours today from UCP and enjoy dependable performance backed by a 3-Year Manufacturer Warranty.
