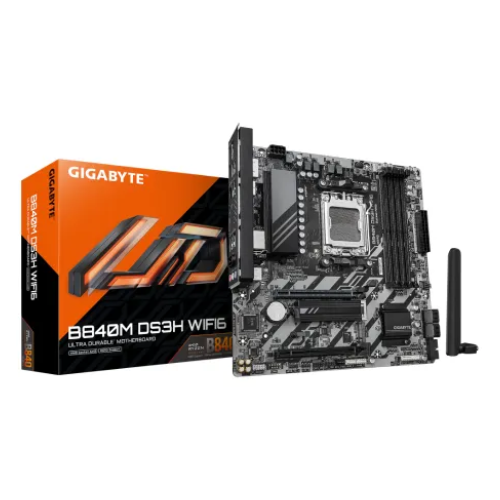

Gigabyte B840M DS3H WIFI6 AM5 mATX Motherboard

Gigabyte check_circle In Stock Model: B840M DS3H WIFI6

Gigabyte B840M DS3H WIFI6 AM5 mATX Motherboard

Name: Gigabyte B840M DS3H WIFI6 AM5 mATX Motherboard
Brand: Gigabyte
Price: 19800 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 21 views

Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 256GB, 8200(OC)
Graphics Output: 2x Display Port, 1 x HDMI
Features: 2x M.2 Slot, Realtek GbE LAN, Wi-Fi 6, Bluetooth 5.3

19,800৳

21,590৳

8% OFF

EMI starts at 649৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors
Chipset	AMD B840
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

M.2 Socket

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs:

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.

Support for up to triple-display at the same time

Connector & Ports

HDMI	1 x HDMI port
USB (s)	USB CPU: - 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless
Supported Storage	1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
Others	Display Port (s): 2 x DisplayPort

Others

Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)

Warranty Details

3 Year

Description

Gigabyte B840M DS3H WIFI6 AMD AM5 mATX Motherboard

The Gigabyte B840M DS3H WIFI6 AMD AM5 mATX Motherboard is a dependable and feature-rich platform built for users who want reliable performance, modern connectivity, and excellent value for their AMD desktop PC. Powered by the AMD B840 chipset, this Micro ATX motherboard supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, making it an ideal choice for gaming, content creation, office productivity, and everyday computing. Built around the latest AM5 platform, the motherboard supports up to 256GB of DDR5 memory with speeds reaching 8200MT/s (OC), delivering outstanding multitasking performance, faster application loading, and smoother gaming experiences. With dual PCIe 4.0 M.2 slots, PCIe 4.0 x16 graphics support, and four SATA ports, users can install high-speed NVMe SSDs and expand storage without compromising performance. For modern connectivity, the motherboard features integrated WiFi 6, Bluetooth 5.3, Realtek 2.5GbE LAN, USB Type-C, USB 3.2 Gen 1 ports, HDMI 2.1, dual DisplayPort outputs, and support for up to three simultaneous displays. GIGABYTE also includes practical features like Q-Flash Plus, GIGABYTE Control Center (GCC), Smart Backup, RGB lighting headers, TPM support, and comprehensive cooling options to simplify system building and long-term maintenance. Whether you're assembling an affordable gaming PC, a home workstation, or a versatile everyday desktop, the Gigabyte B840M DS3H WIFI6 AMD AM5 mATX Motherboard delivers dependable performance, excellent expandability, and future-ready DDR5 technology. Available at UCP, it is backed by a 3-year manufacturer warranty for added peace of mind.

Key Benefits of Gigabyte B840M DS3H WIFI6 Motherboard

1. Supports AMD Ryzen 9000, 8000 & 7000 Series Processors

The AMD AM5 socket and B840 chipset provide broad compatibility with the latest Ryzen desktop processors, delivering reliable performance for gaming, multitasking, productivity, and content creation.

2. High-Speed DDR5 Memory with PCIe 4.0 Performance

Support for DDR5 memory up to 8200MT/s (OC), PCIe 4.0 graphics, and dual PCIe 4.0 M.2 SSD slots ensures faster data transfer, improved responsiveness, and smooth performance for demanding applications.

3. Fast WiFi 6 and Reliable 2.5GbE Networking

Integrated WiFi 6, Bluetooth 5.3, and Realtek 2.5Gb Ethernet provide stable wireless connectivity, faster downloads, low-latency gaming, and dependable wired networking for both work and entertainment.

4. Flexible Storage and Triple Display Support

Dual M.2 PCIe SSD slots, four SATA ports, HDMI 2.1, and dual DisplayPort outputs allow users to build powerful storage solutions while supporting up to three displays for enhanced productivity and multitasking.

5. Easy PC Building with GIGABYTE Smart Features

Features like Q-Flash Plus, GIGABYTE Control Center, Smart Backup, RGB lighting headers, TPM support, and efficient cooling headers make system installation, BIOS updates, and customization simple for users of all experience levels.

The Gigabyte B840M DS3H WIFI6 AMD AM5 mATX Motherboard is an excellent choice for users looking to build a reliable and modern AMD desktop system. Featuring support for Ryzen 9000, 8000, and 7000 Series processors, DDR5 memory up to 256GB, PCIe 4.0 graphics, dual M.2 SSD slots, WiFi 6, Bluetooth 5.3, Realtek 2.5GbE LAN, and triple-display capability, it delivers outstanding performance for gaming, business, and everyday computing. Order yours today from UCP and enjoy dependable quality backed by a 3-year manufacturer warranty.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of Gigabyte B840M DS3H WIFI6 AM5 mATX Motherboard?

The latest price of Gigabyte B840M DS3H WIFI6 AM5 mATX Motherboard in Bangladesh is 19,800৳ You can buy the Gigabyte B840M DS3H WIFI6 AM5 mATX Motherboard at best price from our Website or visit any of our showrooms.
