| Supported CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Others |
| PCI | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| M.2 Socket | 2 x M.2 Socket 3 connectors |
| Others |
| Type | DDR5 |
| Slots | 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory |
| Supported Memory | |
| Maximum Memory | 128 GB |
| Others |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
| Others |
| HDMI | 1 x HDMI port* |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication module | |
| Supported Storage | Chipset: - 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header j 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| Others |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software * Service discontinued as a result of contract termination by the software provider. |
| Warranty Details | 3 Years |
| others |

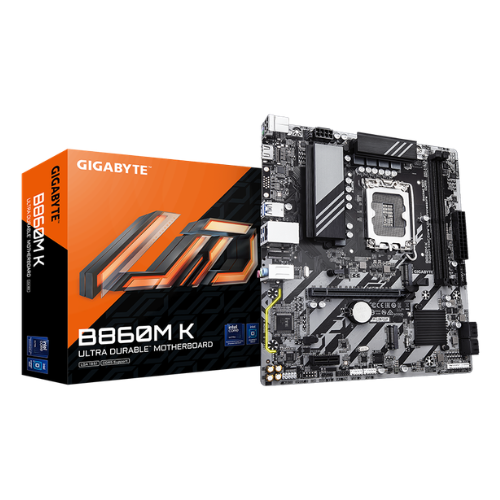

The GIGABYTE B860M K DDR5 Intel LGA1851 mATX Motherboard is designed for users looking to build a reliable, high-performance desktop powered by the latest Intel Core Ultra processors. Built on the Intel B860 Express chipset and featuring the new LGA1851 socket, this motherboard provides a future-ready platform for gaming, productivity, content creation, and everyday computing while offering the stability and performance expected from GIGABYTE. Supporting up to 128GB of DDR5 memory with overclocking speeds reaching 8800MT/s (OC), the motherboard delivers exceptional memory bandwidth for faster multitasking, improved application responsiveness, and smoother gaming experiences. The PCIe 4.0 x16 graphics slot ensures full-speed support for modern graphics cards, while dual PCIe 4.0 M.2 SSD slots provide ultra-fast storage performance for quicker boot times, faster file transfers, and reduced game loading times. The motherboard also offers comprehensive connectivity with multiple USB 3.2 Gen 1 ports, HDMI 2.1 display output, Gigabit Ethernet, high-definition Realtek audio, and four SATA ports for additional storage expansion. GIGABYTE's exclusive features, including Q-Flash, Smart Backup, GIGABYTE Control Center (GCC), advanced hardware monitoring, RGB Gen2 support, and efficient cooling controls, make system setup, optimization, and maintenance simple for both beginners and experienced PC builders. Whether you're building a modern office workstation, an entry-level gaming PC, or a dependable home desktop, the GIGABYTE B860M K DDR5 Intel LGA1851 mATX Motherboard offers outstanding performance, stability, and upgrade flexibility. Available at UCP, it is backed by a 3-Year Manufacturer Warranty, making it an excellent long-term investment for your next Intel PC build.
1. Ready for Intel Core Ultra Processors
Built with the latest LGA1851 socket and Intel B860 chipset, this motherboard fully supports Intel Core Ultra processors, delivering reliable performance for gaming, productivity, content creation, and multitasking.
2. High-Speed DDR5 Memory Performance
Supporting up to 128GB DDR5 memory with speeds up to 8800MT/s (OC), the motherboard provides excellent bandwidth for faster application loading, smoother multitasking, and improved system responsiveness.
3. Fast PCIe 4.0 Graphics and Storage
A PCIe 4.0 x16 expansion slot combined with dual PCIe 4.0 M.2 SSD slots ensures high-speed graphics performance and ultra-fast NVMe storage for gaming, editing, and professional workloads.
4. Reliable Connectivity and Expandability
With USB 3.2 Gen 1, HDMI 2.1, Gigabit LAN, four SATA ports, and multiple internal headers, the motherboard offers excellent connectivity and flexible expansion for future upgrades.
5. Smart Cooling and Easy BIOS Management
Features like Q-Flash, GIGABYTE Control Center, Smart Backup, comprehensive hardware monitoring, RGB Gen2 support, and intelligent fan controls help simplify PC building while ensuring long-term system stability.
The GIGABYTE B860M K DDR5 Intel LGA1851 mATX Motherboard is an excellent choice for users seeking a dependable and future-ready Intel platform. Featuring the Intel B860 chipset, LGA1851 socket, support for Intel Core Ultra processors, 128GB DDR5 memory, PCIe 4.0 graphics, dual M.2 PCIe 4.0 storage, Gigabit LAN, HDMI 2.1 connectivity, and GIGABYTE's exclusive management features, it delivers exceptional value for gaming, office productivity, and everyday computing. Order yours today from UCP and enjoy reliable performance backed by a 3-Year Manufacturer Warranty.
The latest price of GIGABYTE B860M K DDR5 Intel LGA1851 mATX Motherboard in Bangladesh is 0৳ You can buy the GIGABYTE B860M K DDR5 Intel LGA1851 mATX Motherboard at best price from our Website or visit any of our showrooms.
