Gigabyte check_circle In Stock Model: GA-H110M-M.2

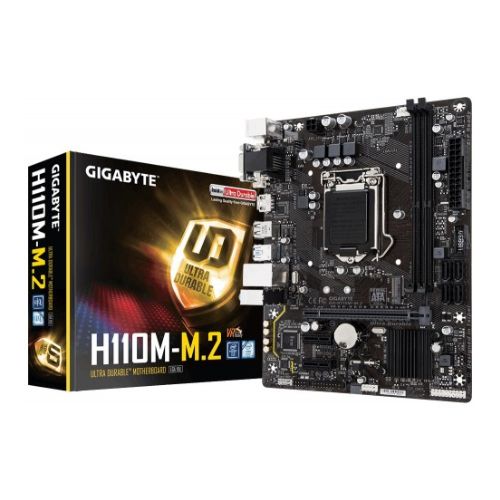

Gigabyte GA-H110M-M.2 DDR4 LGA1151 Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 33 views
  • 7th/6th Gen Intel® Core Processors
  • Dual Channel DDR4, 2 DIMMs
  • HDMI 1.4, DVI-D, D-sub
  • Ultra-Fast M.2
8,800৳
9,500৳
7% OFF
EMI starts at 288৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupport for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
ChipsetIntel® H110 Express Chips
Form FactorMicro ATX Form Factor; 22.6cm x 17.4cm
BIOS1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Others
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
M.2 Socket1 x M.2 Socket 3 connector
Others
Memory
Type2 x DDR4 DIMM
SlotsDual channel memory architecture
Supported Memory
Support for DDR4 2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory32 GB
Others
Graphics
Graphics1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
OthersMax Shared Memory: 512 MB
Connector & Ports
HDMI1 x HDMI port
USB (s)
4 x USB 3.1 Gen 1 ports
6 x USB 2.0/1.1 ports
LAN Port (s)Intel® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
Supported Storage1 x M.2 connector
4 x SATA 6Gb/s connectors
RAID
Audio1 x front panel audio header
3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )
OthersD-Sub (s): 1 x D-Sub port
DVI-D (s): 1 x DVI-D port
Others
Special Features
Bundled Software
Warranty Details
Warranty Details02 years
others
Description

Gigabyte GA-H110M-M.2 Motherboard – Reliable Performance for Intel 6th & 7th Gen PCs

The Gigabyte GA-H110M-M.2 DDR4 LGA1151 Motherboard is an excellent choice for users looking to build or upgrade a dependable desktop based on Intel 6th and 7th Generation processors. Powered by the Intel H110 Express Chipset, this Micro ATX motherboard offers reliable performance, efficient connectivity, and modern storage support, making it ideal for home users, office workstations, educational institutions, and entry-level business PCs. Designed with the LGA1151 socket, the motherboard supports Intel Core i7, i5, i3, Pentium, and Celeron processors. It features dual DDR4 DIMM slots with support for up to 32GB of memory, allowing smoother multitasking, improved application performance, and better overall system responsiveness. Whether you're browsing the web, working with office software, attending online classes, or managing business tasks, the GA-H110M-M.2 provides stable and efficient computing. One of its biggest advantages is the inclusion of an M.2 SSD slot, enabling much faster boot speeds and application loading compared to traditional SATA storage. Four SATA 6Gb/s ports provide additional flexibility for high-capacity storage devices. The motherboard also offers multiple display outputs including HDMI, DVI-D, and D-Sub, allowing compatibility with a wide variety of monitors. High-speed USB 3.1 Gen 1 ports, Intel Gigabit LAN, PCI Express expansion slots, and premium audio further enhance the user experience. If you're looking for the Gigabyte GA-H110M-M.2 DDR4 Price in BD, UCP offers genuine GIGABYTE motherboards with competitive pricing, official warranty, and dependable customer support. Whether you're building a budget office PC or upgrading an older Intel platform, this motherboard delivers reliable performance and excellent long-term value.

Key Benefits of Gigabyte GA-H110M-M.2 Motherboard

1. Optimized for Intel 6th & 7th Generation Processors

Supporting Intel Core i7, i5, i3, Pentium, and Celeron processors, this motherboard provides a stable platform for office applications, educational use, home entertainment, and everyday productivity. It allows users to maximize the performance of compatible Intel processors without unnecessary complexity.

2. DDR4 Memory Improves Everyday Computing

With dual DDR4 memory slots supporting up to 32GB RAM, users benefit from improved multitasking, quicker application switching, and smoother system performance. XMP support also helps compatible memory modules operate at optimized speeds for enhanced efficiency.

3. M.2 SSD Support for Faster Storage Performance

The integrated M.2 Socket 3 connector allows installation of high-speed SSDs, significantly reducing Windows boot times and application loading. Combined with four SATA 6Gb/s ports, users can create flexible storage solutions for speed and capacity.

4. Multiple Display and Connectivity Options

Featuring HDMI, DVI-D, and D-Sub outputs, the motherboard supports a wide range of monitors and display configurations. USB 3.1 Gen 1 ports, Intel Gigabit Ethernet, PCIe expansion slots, and HD audio provide excellent connectivity for modern peripherals and networking.

5. Reliable Design with Easy Upgrade Options

The Micro ATX form factor fits most desktop cases while offering convenient expansion through PCIe slots, SATA ports, TPM support, and multiple internal connectors. GIGABYTE's durable components and quality engineering ensure long-lasting stability for everyday use.
