Gigabyte check_circle In Stock Model: H610M H

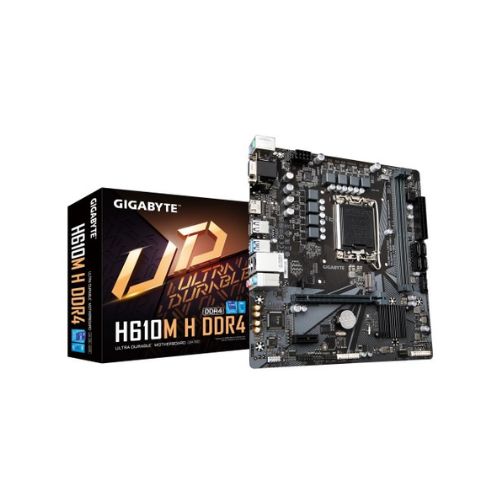

GIGABYTE H610M H DDR4 Micro ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 32 views
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Intel GbE LAN with cFosSpeed Internet Accelerator Software
  • NVMe PCIe 3.0 x4 M.2
10,500৳
EMI starts at 344৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPULGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
ChipsetIntel H610 Express Chipset
Form FactorMicro ATX Form Factor; 23.0cm x 21.5cm
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Memory
TypeDDR4
Slots2 x DDR DIMM sockets
Supported Memory3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum MemoryUp to 64 GB (32 GB single DIMM capacity) of system memory
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
Connector & Ports
HDMI1 x HDMI 2.0 port
USB (s)Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Intel GbE LAN chip (1 Gbps/100 Mbps)
Supported StorageChipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
OthersD-Sub (s)
1 x D-Sub port
Others
Special FeaturesSupport for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Details
Warranty Details3 years
Description

GIGABYTE H610M H DDR4 Micro ATX Motherboard

The GIGABYTE H610M H DDR4 Micro ATX Motherboard is an excellent foundation for building a reliable, budget-friendly, and future-ready Intel desktop PC. Whether you're assembling a home office computer, an educational workstation, or an entry-level gaming system, this motherboard delivers the essential features and performance needed for modern computing. Designed to support Intel's 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors, the H610M H offers impressive flexibility for users looking to build or upgrade their systems without overspending. The Intel H610 Express chipset ensures stable operation and compatibility with the latest hardware technologies, making it a practical choice for everyday users and PC enthusiasts alike. The board supports up to 64GB of DDR4 memory with speeds up to 3200MHz and XMP compatibility, allowing users to enjoy smoother multitasking, faster application performance, and improved system responsiveness. Storage flexibility is another advantage, featuring an M.2 PCIe 3.0 slot alongside four SATA 6Gb/s ports for high-speed SSDs and large-capacity hard drives. For users planning to install a dedicated graphics card, the PCIe 4.0 x16 slot provides maximum bandwidth for modern GPUs. Meanwhile, integrated graphics support offers HDMI and D-Sub outputs, enabling crisp visuals even without a discrete graphics card. Built-in Intel Gigabit LAN ensures stable internet connectivity, while multiple USB ports simplify peripheral connections. Available at UCP, the GIGABYTE H610M H DDR4 Micro ATX Motherboard is a smart investment for users seeking durability, expandability, and dependable performance for years to come.

Key Benefits of GIGABYTE H610M H DDR4 Motherboard

1. Ready for Intel's Latest Processor Generations

The LGA1700 socket supports 14th, 13th, and 12th Generation Intel processors, allowing users to build modern systems with excellent processing power and future upgrade potential. This flexibility helps extend the lifespan of your investment.

2. Faster Multitasking with High-Speed DDR4 Memory

Supporting up to 64GB of DDR4 memory at speeds up to 3200MHz, the motherboard enables smoother multitasking, quicker application loading, and better overall responsiveness. XMP support makes memory optimization simple and efficient.

3. Flexible Storage Options for Better Performance

The built-in M.2 PCIe SSD slot provides fast boot times and rapid data access, while four SATA connectors allow users to expand storage capacity according to their needs. This combination delivers both speed and scalability for growing workloads.

4. Enhanced Gaming and Graphics Support

A PCIe 4.0 x16 slot ensures compatibility with modern graphics cards, giving gamers and creators the bandwidth needed for high-performance applications. Users who prefer integrated graphics can also enjoy 4K output through the HDMI connection.

5. Smart Features for Easy System Management

GIGABYTE's software ecosystem, including APP Center, Q-Flash, EasyTune, Smart Backup, and Fast Boot, simplifies system optimization and maintenance. These tools help users manage updates, monitor performance, and improve overall PC usability with minimal effort.

The GIGABYTE H610M H DDR4 Micro ATX Motherboard is an ideal solution for students, professionals, office users, and entry-level gamers looking for dependable Intel platform performance. Available at UCP, it combines modern connectivity, upgrade flexibility, and trusted GIGABYTE quality in a compact Micro ATX design.
