Gigabyte check_circle In Stock Model: H810M H

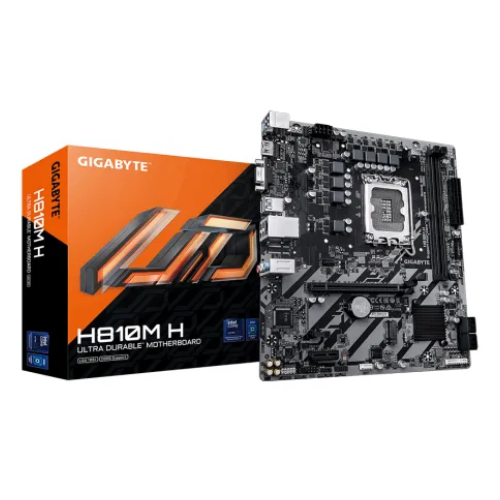

Gigabyte H810M H LGA1851 mATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 9 views
  • Supported CPU: Intel Core Ultra Processors, LGA1851 socket
  • Supported RAM: 2x DDR5, Max 128GB, Supports Up to 6400 MT/s
  • Graphics Output: 1x HDMI port, 1 x D-Sub
  • Features: 1x M.2 slots, Realtek GbE LAN chip
12,100৳
13,240৳
9% OFF
EMI starts at 397৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPULGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU
ChipsetIntel H810 Express Chipset
Form FactorMicro ATX Form Factor; 24.4cm x 21.5cm
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Others
Expansion Slots
PCICPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
M.2 Socket- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
Others
Memory
TypeDDR5
Slots2 x DDR5
Supported MemorySupport for DDR5 6400/5600 MT/s memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memoryup to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Others
Graphics
GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
(Graphics specifications may vary depending on CPU support.)
Others
Connector & Ports
HDMI1 x HDMI port
USB (s)Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
Supported StorageChipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x D-Sub port
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
Others
Others
Special FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Smart Backup
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Details
Warranty Details3 Year
others
Description

Gigabyte H810M H LGA1851 mATX Motherboard for Reliable Intel Core Ultra Performance

Building a modern PC starts with choosing the right motherboard, and the Gigabyte H810M H LGA1851 mATX Motherboard is an excellent choice for users who want dependable performance, future-ready connectivity, and outstanding value. Designed for the latest Intel® Core™ Ultra Processors, this motherboard combines the power of the Intel H810 Express Chipset with advanced DDR5 memory support, PCIe 4.0 connectivity, and Gigabyte's renowned reliability. Whether you're assembling a home computer, office workstation, student PC, or an entry-level content creation system, the H810M H provides everything needed for a stable and efficient computing experience. Supporting up to 128GB DDR5 memory with speeds up to 6400 MT/s, this motherboard ensures faster multitasking, quicker application loading, and smoother everyday performance. The PCIe 4.0 x16 slot delivers excellent bandwidth for modern graphics cards, while the M.2 PCIe 4.0 SSD slot significantly improves boot times and storage performance. Users also benefit from versatile display outputs including HDMI 2.1 and D-Sub, making it compatible with both modern and legacy monitors. Gigabyte has equipped this motherboard with practical features such as Q-Flash, Smart Backup, GIGABYTE Control Center (GCC), high-definition Realtek audio, and multiple USB connectivity options including an internal USB Type-C header. These features simplify system management while enhancing productivity and user convenience. If you're searching for the Gigabyte H810M H LGA1851 Motherboard Price in Bangladesh, United Computer Palace offers genuine Gigabyte products backed by a 3-year manufacturer warranty, competitive pricing, and trusted customer service. Whether you're upgrading your current desktop or building a new Intel Core Ultra PC, the Gigabyte H810M H delivers the perfect balance of performance, reliability, and expandability for years to come.

Key Benefits of Gigabyte H810M H LGA1851 mATX Motherboard

1. Built for the Latest Intel Core Ultra Processors

The LGA1851 socket combined with the Intel H810 chipset ensures full compatibility with the newest Intel Core Ultra CPUs, giving users access to improved processing power, better efficiency, and excellent long-term upgrade potential.

2. High-Speed DDR5 Memory Performance

Supporting dual-channel DDR5 memory up to 128GB and speeds reaching 6400 MT/s, the motherboard delivers faster application loading, smoother multitasking, and improved overall system responsiveness. It also supports Intel XMP profiles for easy performance optimization.

3. PCIe 4.0 and Ultra-Fast NVMe Storage

The PCIe 4.0 x16 expansion slot provides maximum bandwidth for modern graphics cards, while the PCIe 4.0 M.2 SSD slot dramatically reduces boot times and accelerates file transfers, making everyday computing and professional workloads much faster.

4. Complete Connectivity for Modern Users

With HDMI 2.1, D-Sub, Gigabit LAN, USB 3.2 Gen 1, USB Type-C header, multiple SATA ports, RGB headers, and numerous internal connectors, the motherboard offers exceptional flexibility for gaming setups, office systems, and future upgrades.

5. Reliable Gigabyte Quality with Smart Features

Gigabyte enhances user experience through useful technologies like Q-Flash for BIOS updates without hassle, Smart Backup for data protection, GIGABYTE Control Center for system management, and high-definition Realtek audio for immersive entertainment. Combined with a 3-year manufacturer warranty, users can enjoy dependable performance and peace of mind throughout the motherboard's lifespan.
