| Supported CPU | AMD Socket AM4, support for : AMD Ryzen 5000 Series / 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
| Chipset | AMD X570 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| PCI | Integrated in the CPU (PCIEX16/ PCIEX8): 3rd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/ PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0 /3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0/ 3.0 |
| M.2 Socket | 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/ PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0/ 3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0/ 3.0 |
| Type | DDR4 |
| Slots | 4 x DDR4 DIMM sockets |
| Supported Memory | AMD Ryzen 5000 series processors: Support for 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Generation AMD Ryzen processors: Support for 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors: Support for 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 128 GB (32 GB single DIMM capacity) |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
| Others | Max Shared Memory Maximum shared memory of 16 GB |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
| USB (s) | Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2/ Gen 1 Type-A port (red) on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset + USB 2.0 Hubs: 8 x USB 2.0/ 1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Intel GbE LAN chip (10/100/1000 Mbit) |
| Wireless Communication module | Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) Integrated in the Chipset (M2B_SOCKET/ M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 4.0/ 3.0 x4/ x2 SSD support) (M2B_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 4.0/ 3.0 x2 SSD support) (M2C_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Warranty Details | 03 Years |

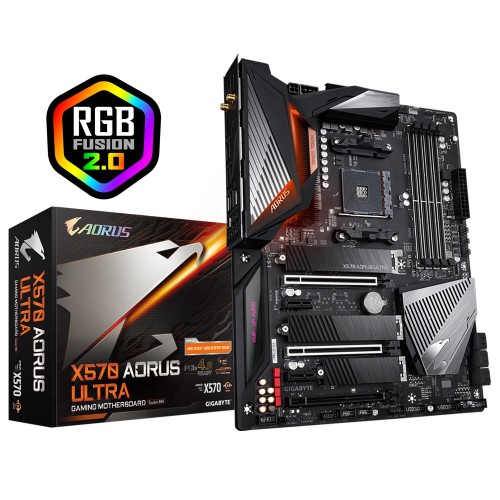

The GIGABYTE X570 AORUS ULTRA Wi-Fi AM4 ATX Motherboard is engineered to deliver high-end performance, reliability, and next-generation connectivity. Built for AMD Ryzen 5000, 3rd Gen Ryzen, and 2000 Series processors, it provides a solid foundation for gaming rigs and professional workstations. Featuring PCIe 4.0 support, triple NVMe SSD slots, and an advanced thermal design with Fins-Array Heatsink and high-quality thermal pads, this motherboard ensures ultra-fast data transfer speeds and optimal heat dissipation. The 12+2 Phases IR Digital VRM guarantees stable power delivery, allowing for seamless overclocking and enhanced multitasking. Integrated Wi-Fi 6 and high-speed Ethernet offer lag-free networking, while immersive audio technologies deliver superior sound clarity. Designed with ultra-durable components and premium features, the X570 AORUS ULTRA is the perfect choice for enthusiasts seeking cutting-edge technology in an AM4 motherboard.
The latest price of GIGABYTE X570 Aorus Ultra Wi-Fi AM4 ATX Motherboard in Bangladesh is 0৳ You can buy the GIGABYTE X570 Aorus Ultra Wi-Fi AM4 ATX Motherboard at best price from our Website or visit any of our showrooms.
