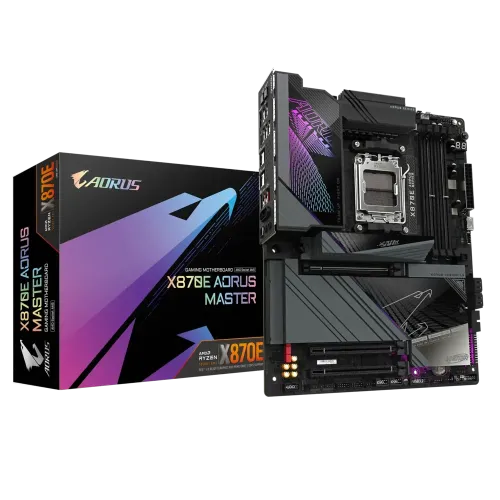

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard

Gigabyte check_circle In Stock Model: X870E AORUS MASTER

GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard

Name: GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard
Brand: Gigabyte
Price: 74400 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 99 views

Model: X870E AORUS MASTER
Supported CPU: Ryzen 9000, 8000 & 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 256GB
Graphics Output: 2 x USB4 (USB Type-C), 1 x HDMI
Features: Realtek 5GbE LAN, Qualcomm Wi-Fi 7 QCNCM865

74,400৳

80,950৳

8% OFF

EMI starts at 2,439৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5, support for : AMD Ryzen 9000, 8000 & 7000 Series Processors
Chipset	AMD X870E
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio. Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Expansion Slots

PCI

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors.
The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Memory

Type	DDR5
Slots	4 DIMMs
Supported Memory	Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Maximum Memory	Up to 256GB (64GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
* Support for DisplayPort 1.4 version and HDR

Connector & Ports

HDMI	1 x HDMI
USB (s)	CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 4 x USB 3.2 Gen 1 ports available through the internal USB headers - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Qualcomm Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio	2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU. Back Panel Connectors 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4 USB Type-C ports (DisplayPorts (Note)) 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU.
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 Years

Description

The GIGABYTE X870E AORUS MASTER DDR5 AM5 ATX Motherboard is a powerhouse designed for gamers, professionals, and PC enthusiasts who demand cutting-edge performance and future-proof technology. Supporting AMD Ryzen 9000, 8000, and 7000 series processors, this high-end motherboard utilizes the AM5 socket to deliver unparalleled processing power and system efficiency. With four DDR5 RAM slots capable of supporting up to 256GB of memory, it ensures extreme performance, faster data transfer, and superior multitasking capabilities. Engineered for speed, it includes PCIe 5.0 slots for next-gen GPUs and storage solutions, unlocking the full potential of high-performance gaming and content creation. Connectivity is top-notch, featuring Realtek 5GbE LAN for ultra-fast wired networking and Qualcomm Wi-Fi 7 for cutting-edge wireless speeds, ensuring smooth online gaming and seamless 4K/8K streaming. The motherboard also comes with dual USB4 (USB Type-C) ports and an HDMI output, providing high-speed connectivity and support for high-resolution displays. Designed with premium components, advanced cooling solutions, and superior power delivery, the GIGABYTE X870E AORUS MASTER is an excellent choice for those looking to build a high-performance system that can handle the demands of modern computing with ease.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard?

The latest price of GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard in Bangladesh is 74,400৳ You can buy the GIGABYTE X870E AORUS MASTER DDR5 AMD AM5 ATX Motherboard at best price from our Website or visit any of our showrooms.
