Gigabyte check_circle In Stock Model: Z790M AORUS ELITE AX

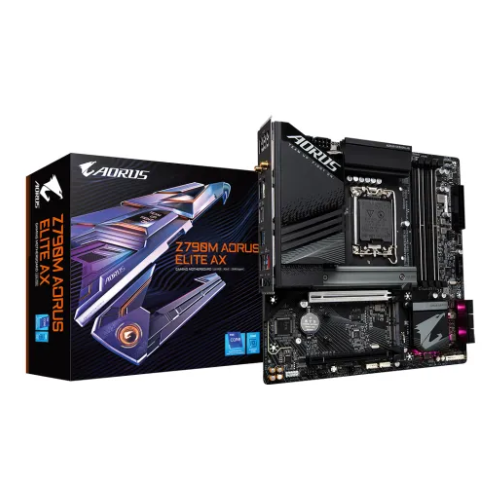

GIGABYTE Z790M AORUS ELITE AX mATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 13 views
  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
35,900৳
39,060৳
8% OFF
EMI starts at 1,177৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPULGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
ChipsetIntel Z790 Express Chipset
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Others
Expansion Slots
PCICPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
M.2 Socket4 x M.2 Socket 3 connectors
Others
Memory
TypeDDR5
Slots4 x DIMM sockets
Supported MemorySupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128GB (32 GB single DIMM capacity)
Others
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3
Others
Connector & Ports
HDMI1 x HDMI
USB (s)Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleIntel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio2 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Others
Special FeaturesSupport for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Details
Warranty Details3 years
others
Description

GIGABYTE Z790M AORUS ELITE AX – Premium DDR5 Gaming Motherboard for Intel Processors

If you're planning to build a powerful gaming rig, content creation workstation, or future-ready PC, the GIGABYTE Z790M AORUS ELITE AX mATX Motherboard is one of the most feature-rich Intel platforms available. Designed around the advanced Intel Z790 Express Chipset, this motherboard supports 14th Gen, 13th Gen, and 12th Gen Intel Core Processors through the LGA1700 socket, providing exceptional performance, stability, and upgrade flexibility for demanding users. Built for enthusiasts, the Z790M AORUS ELITE AX features support for DDR5 memory up to 7600MHz (O.C.), allowing users to maximize gaming performance, multitasking efficiency, and productivity workloads. The motherboard also includes a PCIe 5.0 x16 slot, delivering next-generation bandwidth for high-end graphics cards, making it ideal for gamers, streamers, and creative professionals who require maximum GPU performance. Storage performance is equally impressive with four M.2 PCIe 4.0 slots and six SATA ports, enabling users to build ultra-fast storage configurations with massive capacity. The integrated Intel Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5GbE LAN ensure fast, reliable networking for gaming, streaming, video conferencing, and professional workloads. GIGABYTE further enhances usability through advanced features such as Q-Flash Plus, Smart Backup, Thunderbolt support, customizable RGB lighting headers, and the intuitive GIGABYTE Control Center (GCC) software. These features simplify system management while providing greater customization options. For users searching for the GIGABYTE Z790M AORUS ELITE AX Price in Bangladesh, United Computer Palace offers genuine products backed by a 3-year manufacturer warranty. Whether you're building a competitive gaming PC or a high-performance workstation, this motherboard delivers the speed, connectivity, and reliability required for modern computing.

Key Benefits of GIGABYTE Z790M AORUS ELITE AX Motherboard

1. Unlock Maximum Performance with Intel Z790 Platform

The Intel Z790 chipset supports Intel's latest 14th, 13th, and 12th Generation processors, providing superior processing power for gaming, content creation, software development, and professional multitasking. Users gain excellent upgrade flexibility without replacing the entire platform.

2. Ultra-Fast DDR5 Memory Support

With support for DDR5 memory speeds up to 7600MHz (O.C.) and a maximum capacity of 128GB, the motherboard significantly improves application responsiveness, gaming frame rates, rendering performance, and multitasking efficiency. XMP support also makes memory overclocking simple and stable.

3. Next-Generation Gaming with PCIe 5.0

The dedicated PCIe 5.0 x16 slot offers massive bandwidth for modern graphics cards, ensuring users can take full advantage of current and future GPU technologies. This results in smoother gameplay, faster rendering, and enhanced performance in demanding applications.

4. Advanced Connectivity and Networking

Integrated Wi-Fi 6E, Bluetooth 5.3, 2.5GbE LAN, USB 3.2 Gen 2x2 Type-C, Thunderbolt expansion support, HDMI, and DisplayPort connectivity provide a complete modern platform for gaming setups, streaming stations, and professional work environments.

5. Flexible Storage and Premium Features

The motherboard includes four M.2 SSD slots, six SATA ports, RAID support, RGB lighting headers, Q-Flash Plus, Smart Backup, and GIGABYTE Control Center. These features help users build a highly customizable, high-capacity system while maintaining excellent performance, easy maintenance, and long-term reliability backed by a 3-year manufacturer warranty.

Reviews (0)
0
☆☆☆☆☆ No reviews yet
Q&A (0)

What is the price of GIGABYTE Z790M AORUS ELITE AX mATX Motherboard?

The latest price of GIGABYTE Z790M AORUS ELITE AX mATX Motherboard in Bangladesh is 35,900৳ You can buy the GIGABYTE Z790M AORUS ELITE AX mATX Motherboard at best price from our Website or visit any of our showrooms.
