MSI check_circle In Stock Model: B850 GAMING PLUS WIFI6E

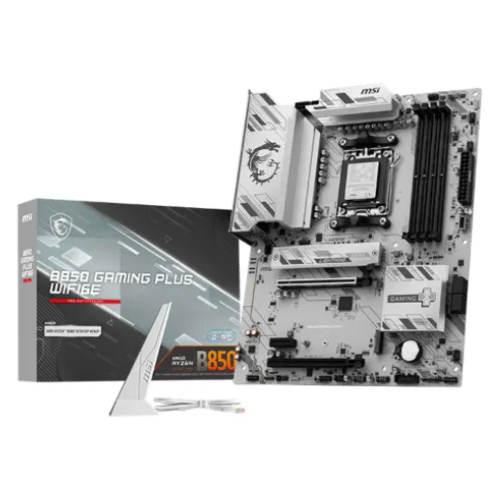

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 24 views
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5
  • Supported RAM: 4x DDR5, Up to 8200 (OC) MT/s, Max. 256GB
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
27,500৳
29,840৳
8% OFF
EMI starts at 901৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD B850
Form FactorATX
243.84mmx304.8mm
BIOS
AudioRealtek ALC897
7.1-Channel High Definition Audio
Others
Expansion Slots
PCI2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Others
Memory
TypeDDR5
Slots4 x UDIMM
Supported MemoryMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory256GB
Others
Graphics
Graphics1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Others
Connector & Ports
HDMI1x HDMI 2.1
USB (s)4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s)Realtek 8125D 2.5G LAN
Wireless Communication moduleWi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
AudioRealtek ALC897
7.1-Channel High Definition Audio
Internal I/O Ports1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Others
Special Features4x EZ Debug LED
1x EZ Memory Detection LED
Bundled Software
Warranty Details
Warranty Details3 Years
others
Description

MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard

If you're building a high-performance AMD gaming or productivity PC, the MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is designed to deliver next-generation performance with excellent reliability. Built around the latest AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series processors, making it an ideal foundation for gamers, content creators, and professionals looking for long-term upgradeability. This motherboard supports up to 256GB of DDR5 memory with speeds reaching 8200+ MT/s (OC), allowing you to enjoy faster application loading, smoother multitasking, and improved gaming responsiveness. Its PCIe 5.0 x16 slot ensures full compatibility with the latest graphics cards, while the PCIe 5.0 M.2 slot provides blazing-fast storage performance for next-generation NVMe SSDs. For modern connectivity, the MSI B850 GAMING PLUS WIFI6E includes Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5G LAN, delivering low-latency networking whether you're gaming online, streaming, or transferring large files. It also features USB 10Gbps Type-C, multiple USB ports, HDMI 2.1, DisplayPort 1.4, and comprehensive internal headers for easy system expansion. MSI has also equipped this motherboard with practical features like EZ Debug LEDs, EZ Memory Detection LED, multiple RGB headers, TPM 2.0 support, and efficient cooling options to simplify system building and improve stability. Whether you're assembling a gaming PC, workstation, or future-ready desktop, the MSI B850 GAMING PLUS WIFI6E provides the performance, connectivity, and reliability needed for demanding workloads. Buy the MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard from UCP to enjoy genuine products, competitive pricing, and reliable warranty support in Bangladesh.

Key Benefits of MSI B850 Motherboard

1. Ready for the Latest AMD Ryzen Processors

The AM5 socket and AMD B850 chipset fully support Ryzen 9000, 8000, and 7000 Series processors, giving you excellent performance today while providing an upgrade path for future AMD CPUs.

2. Ultra-Fast DDR5 Memory Performance

With support for up to 256GB DDR5 RAM and overclocking speeds up to 8200+ MT/s, this motherboard delivers faster rendering, smoother gaming, and improved multitasking for demanding applications.

3. Next-Generation PCIe 5.0 Storage & Graphics

Enjoy maximum bandwidth with a PCIe 5.0 x16 graphics slot and PCIe 5.0 M.2 SSD support, enabling faster game loading, quicker file transfers, and full compatibility with next-generation GPUs and SSDs.

4. High-Speed Networking for Gaming & Streaming

Integrated Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb Ethernet provide stable, high-speed wireless and wired connections for competitive gaming, video conferencing, live streaming, and cloud-based workloads.

5. Reliable Build Quality with Modern Connectivity

Featuring multiple USB 10Gbps ports, HDMI 2.1, DisplayPort 1.4, RGB lighting headers, TPM 2.0 support, RAID capability, and MSI's EZ Debug LEDs, this motherboard simplifies PC building while delivering long-term stability and expandability.

The MSI B850 GAMING PLUS WIFI6E AM5 ATX Motherboard is an outstanding choice for users who want premium gaming performance, fast connectivity, and future-ready hardware without stepping up to a more expensive enthusiast chipset. Whether you're upgrading an existing system or building a new DDR5 gaming PC, it offers an excellent balance of performance, features, and value.
