MSI check_circle In Stock Model: MAG B860 TOMAHAWK WIFI

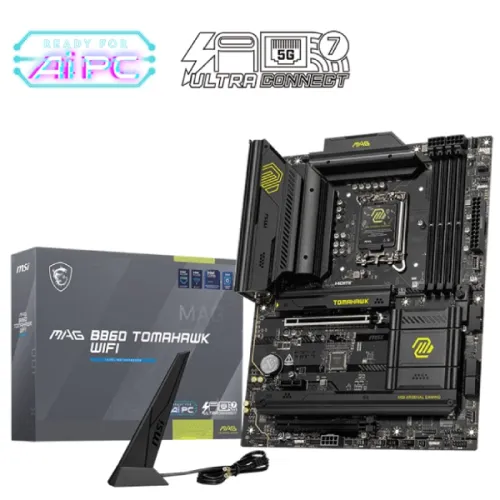

MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 127 views

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2 Slot, 1x 5Gbps LAN, Intel Killer Wi-Fi 7, Bluetooth 5.4

34,000৳

38,500৳

12% OFF

EMI starts at 1,114৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset	INTEL B860
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Expansion Slots

PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

Memory

Type	DDR5
Slots	4x UDIMM
Supported Memory	Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory	256GB

Graphics

1x HDMI
Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Connector & Ports

HDMI	1x HDMI 2.1 with FRL
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 4x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 40Gbps Type C (Rear)
LAN Port (s)	Intel Killer E5000 5Gbps LAN
Wireless Communication module	Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

Others

Special Features

4x EZ Debug LED
1x EZ Memory Detection LED

Warranty Details

3 Year

Description

The MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX Motherboard is a powerhouse designed for high-performance gaming and professional use. Featuring support for Intel Core Ultra Series 2 Processors, this motherboard provides DDR5 memory with overclocking capabilities up to 9200 MT/s. Equipped with PCIe 5.0, Thunderbolt 4, and Wi-Fi 7, the MSI MAG B860 TOMAHAWK delivers ultra-fast data transfer speeds, seamless connectivity, and future-proof performance. The Intel Killer E5000 5Gbps LAN and Intel Killer BE1750x Wi-Fi ensure stable and high-speed networking. With 3x M.2 slots and up to 256GB DDR5 memory support, it offers ample storage and memory expansion for all your needs. The motherboard’s 7.1-Channel High Definition Audio and S/PDIF output deliver an immersive sound experience, making it perfect for gamers and creators seeking top-tier performance.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX?

The latest price of MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX in Bangladesh is 34,000৳ You can buy the MSI MAG B860 TOMAHAWK WIFI LGA 1851 ATX at best price from our Website or visit any of our showrooms.
