MSI check_circle In Stock Model: MAG Z790 TOMAHAWK WIFI

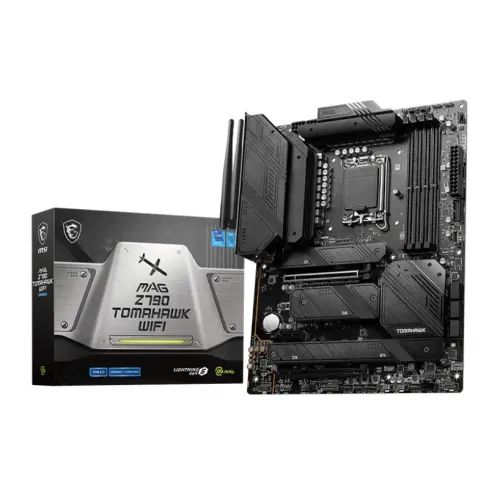

MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 48 views
  • Supported CPU: 14th/13th/12th Gen Core
  • Supported RAM: 4x DDR5, 7200+(OC), Max 192GB
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5G LAN with Wi-Fi 6E Solution
39,700৳
44,550৳
11% OFF
EMI starts at 1,301৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA1700
ChipsetIntel Z690 Chipset
Form FactorATX
243.84mmx304.8mm
BIOS
AudioRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Others
Expansion Slots
PCI2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket4x M.2 slots
Others
Memory
TypeDDR5
Slots4 x DIMM
Supported MemoryMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory192GB
Others
Graphics
Graphics1x HDMI
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
Others
Connector & Ports
HDMI1x HDMI 2.1
USB (s)4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)Intel 2.5Gbps LAN
Wireless Communication moduleIntel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Supported Storage4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
OthersDisplay Port (s):
1x DisplayPort 1.4
Others
Special FeaturesLED FEATURE: 4x EZ Debug LED
Bundled Software
Warranty Details
Warranty Details3 years
others
Description

MSI MAG Z790 TOMAHAWK WIFI ATX DDR5 LGA1700 Motherboard

Build a high-performance gaming or professional workstation with the MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard, engineered to unlock the full potential of Intel's 14th, 13th, and 12th generation processors. Designed for enthusiasts, gamers, content creators, and power users, this motherboard combines premium connectivity, robust power delivery, lightning-fast storage, and advanced networking to deliver a future-ready computing experience. Powered by the Intel Z790 chipset and supporting the LGA1700 socket, the motherboard offers exceptional compatibility with Intel Core processors while enabling advanced overclocking and system optimization. With support for up to 192GB DDR5 memory at speeds reaching 7200+ MHz (OC), users can enjoy superior multitasking, faster application loading, and improved gaming performance. Storage flexibility is another standout feature. The board includes four PCIe Gen4 M.2 slots and seven SATA 6Gb/s ports, allowing users to install multiple NVMe SSDs and traditional hard drives without sacrificing speed or expandability. Gamers will appreciate the PCIe 5.0 x16 slot, ensuring compatibility with the latest high-end graphics cards for maximum gaming performance. Connectivity is equally impressive with Intel Wi-Fi 6E, 2.5GbE LAN, Bluetooth 5.3, USB 3.2 Gen2x2 Type-C, HDMI 2.1, DisplayPort 1.4, and premium Realtek ALC4080 audio. Whether you're editing 4K videos, streaming, gaming competitively, or building a productivity workstation, the MSI MAG Z790 TOMAHAWK WIFI delivers speed, stability, and reliability. Available at UCP, this motherboard is an excellent choice for users seeking premium performance, extensive expansion options, and long-term upgrade potential.

Key Benefits of MSI MAG Z790 TOMAHAWK WIFI Motherboard

1. Unleash Maximum Intel Performance

Supporting Intel 14th, 13th, and 12th Generation Core processors, the Z790 chipset provides outstanding computing power for gaming, content creation, software development, and demanding professional workloads. Combined with PCIe 5.0 support, your system remains ready for next-generation hardware upgrades.

2. Ultra-Fast DDR5 Memory for Heavy Multitasking

With four DDR5 DIMM slots supporting up to 192GB RAM and overclocking speeds beyond 7200MHz, users experience smoother multitasking, faster rendering, lower game loading times, and enhanced overall responsiveness.

3. Massive High-Speed Storage Expansion

Featuring 4 PCIe Gen4 M.2 slots and 7 SATA ports, this motherboard allows users to build large-capacity storage arrays while maintaining ultra-fast SSD performance. It's ideal for gamers with extensive libraries and creators handling massive media files.

4. Premium Networking & Connectivity

Enjoy ultra-fast networking with Intel 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth 5.3 for low-latency gaming, stable online meetings, rapid downloads, and seamless wireless device connectivity. The wide selection of USB ports, including USB 3.2 Gen2x2 Type-C, ensures compatibility with modern peripherals and storage devices.

5. Built for Reliability and Future Upgrades

The MSI MAG Z790 TOMAHAWK WIFI combines durable components, advanced cooling support, PCIe 5.0 expansion, RAID storage options, premium Realtek ALC4080 7.1-channel audio, TPM 2.0 support, and comprehensive fan headers. These features help users build a stable, high-performance PC that can easily adapt to future hardware upgrades while maintaining excellent reliability for years to come.

Reviews (0)
0
☆☆☆☆☆ No reviews yet
Q&A (0)

What is the price of MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard?

The latest price of MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard in Bangladesh is 39,700৳ You can buy the MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard at best price from our Website or visit any of our showrooms.
