| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 200mmx236.16mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | 64GB |
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| HDMI | 1x HDMI |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 1x USB 3.2 Gen1 Type A ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Special Features | 4x EZ Debug LED |
| Warranty Details | 3 years |

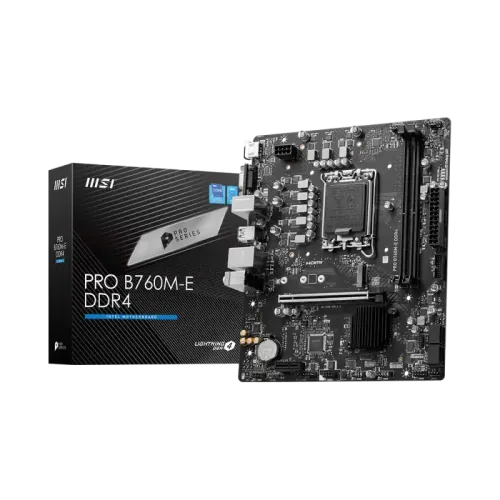

Build your next PC with confidence using the MSI PRO B760M-E DDR4 mATX Motherboard. Offering an array of features designed to deliver smooth performance, stability, and versatility, this motherboard is perfect for both gaming enthusiasts and professionals looking to upgrade their setup. Available now at !
Supports Latest Intel Processors
The MSI PRO B760M-E motherboard supports the latest 14th/13th/12th Gen Intel Core Processors, along with Pentium Gold and Celeron processors. Featuring the LGA 1700 socket and the powerful Intel B760 chipset, this motherboard offers exceptional performance and compatibility.
High-Speed DDR4 Memory Support
This motherboard supports DDR4 memory, with speeds ranging from 2133 MHz to 4800 MHz (OC), giving you the flexibility to choose the perfect memory for your build. With support for up to 64GB of RAM, you'll have all the power you need for gaming, multitasking, and productivity.
Dual Display Outputs
Enjoy a seamless visual experience with 1x HDMI (supports 4K at 30Hz) and 1x VGA (supports up to 2048x1536 resolution). Whether you're gaming, working, or watching media, this motherboard has you covered with flexible display options.
Expansion Slots for Future-Proofing
The MSI PRO B760M-E features 1x PCI-E x16 slot and 1x PCI-E x1 slot, allowing you to install multiple expansion cards, including high-performance graphics cards, sound cards, and more. Upgrade your system with PCIe 4.0 and PCIe 3.0 slots for increased bandwidth and speed.
Fast and Reliable USB Connectivity
With 4x USB 2.0 ports on the rear and 2x USB 3.2 Gen 1 Type-A ports, you can easily connect your peripherals for fast data transfer and reliable performance. The motherboard also includes Gigabit LAN for seamless networking and online gaming.
Storage Flexibility with M.2 & SATA Support
The motherboard supports 1x M.2 PCIe 4.0 x4 and 4x SATA 6G ports, giving you plenty of options for storage expansion. Whether you're installing a lightning-fast SSD or additional HDDs, this motherboard has the storage capacity to meet your needs.
Premium Audio with Realtek ALC897 Codec
Enjoy superior audio quality with 7.1-Channel High-Definition Audio powered by the Realtek ALC897 Codec. Whether you're gaming, watching movies, or editing music, you’ll get crisp, clear sound for a better experience.
Enhanced Security Features
This motherboard comes equipped with a TPM (Trusted Platform Module) header and 4x EZ Debug LEDs for easy troubleshooting. It supports RAID 0, RAID 1, RAID 5, and RAID 10 for storage devices, providing enhanced data security.
The MSI PRO B760M-E DDR4 mATX Motherboard is available for purchase at . Check out our website to view the latest price and place your order today for fast delivery.
The latest price of MSI PRO B760M-E DDR4 in Bangladesh is 12,800৳ You can buy the MSI PRO B760M-E DDR4 at best price from our Website or visit any of our showrooms.
