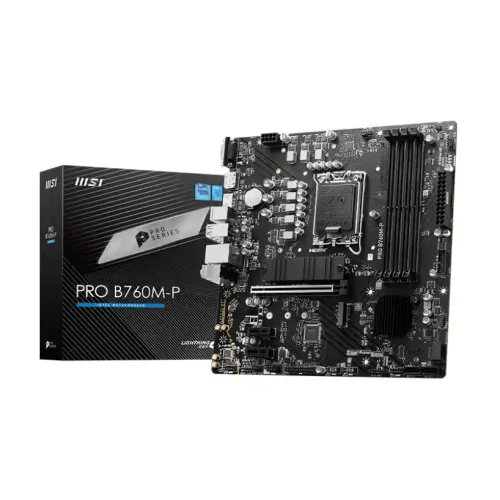

MSI PRO B760M-P DDR5 mATX Motherboard

MSI PRO B760M-P DDR5 mATX Motherboard – Intel B760 Chipset, 192GB RAM Support

Overview:

Enhance your build with the MSI PRO B760M-P DDR5 mATX Motherboard, designed to maximize performance for Intel 14th, 13th, and 12th Gen Core processors. Whether you're a professional or a gamer, this motherboard offers outstanding connectivity and memory support, making it the perfect choice for high-demand tasks.

Key Features:

• Processor Support: Fully compatible with Intel 14th/13th/12th Gen Core processors, including Pentium Gold and Celeron, using the LGA 1700 socket for seamless upgrades.
• Form Factor: mATX (243.84mm x 243.84mm) – ideal for compact PC builds with excellent expandability.
• Memory Support:
  • Supports DDR5 RAM with overclocking speeds up to 6800+ MHz.
  • Maximum memory capacity of 192GB, providing ample space for multi-tasking and running resource-heavy applications.
  • Dual-Channel support with Intel XMP 3.0 for boosted performance.
• Expansion Slots:
  • 1x PCI-E x16 slot (PCIe 4.0) for high-performance GPUs.
  • 2x PCI-E x1 slots for additional expansion options like sound cards or network adapters.
• Graphics Options:
  • 1x HDMI (4K at 30Hz), 1x DisplayPort (4K at 60Hz), and 1x VGA (up to 2048x1536 resolution) for flexible display setups.
• Storage:
  • 2x M.2 slots supporting PCIe 4.0 x4 and SATA mode for fast data transfer.
  • 4x SATA 6G ports for additional storage devices.
  • RAID support (RAID 0, RAID 1, RAID 5, RAID 10) for data redundancy and speed.
• Audio: Realtek ALC897 Codec with 7.1-Channel High Definition Audio for a superior sound experience.
• Connectivity:
  • A variety of USB ports including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 Type C for fast data transfer and device connectivity.
  • Realtek RTL8111H Gigabit LAN for stable and fast network connections.
• Additional Features:
  • RGB LED connector to add a touch of custom lighting to your build.
  • EZ Debug LED for easy troubleshooting.
  • TPM 2.0 support for enhanced security features.

Why Choose the MSI PRO B760M-P DDR5 Motherboard?

This motherboard offers a perfect balance of performance, flexibility, and future-proofing. Its robust features, including excellent memory support, ample expansion slots, and versatile storage options, make it a top choice for users looking to build a powerful system. Ideal for workstations, gaming, and multitasking, the MSI PRO B760M-P ensures your PC is ready for whatever comes next.

Warranty:

• 3-Year Manufacturer Warranty, offering reliability and peace of mind.
