MSI check_circle In Stock Model: PRO H610M-E

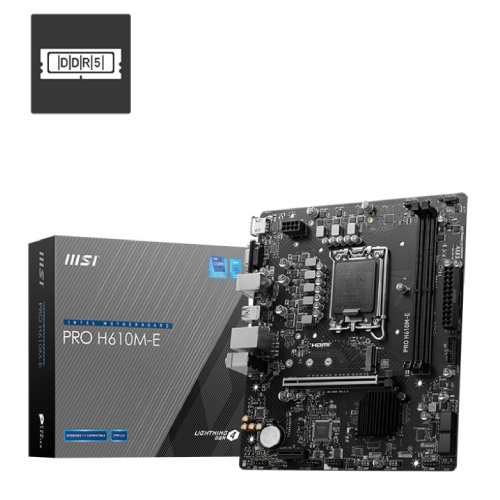

MSI PRO H610M-E Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 131 views
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 96GB
  • Graphics Output: 1x HDMI, 1x VGA
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
9,900৳
11,880৳
17% OFF
EMI starts at 325৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron Processors
LGA 1700
ChipsetIntel H610 Chipset
Form FactormATX
200mmx236.16mm
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Memory
TypeDDR5
Slots2
Supported MemoryMemory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory96GB
Graphics
GraphicsSupport HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI1x HDMI 1.4 with HDR port
USB (s)4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)Realtek RTL8111H Gigabit LAN
Supported Storage1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Audio1x Front panel audio connector
Internal I/O Ports1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Special Features1x 4-pin RGB LED connector
4x EZ Debug LED
Warranty Details
Warranty Details3 years
Description

MSI PRO H610M-E mATX Motherboard – Ideal for Your High-Performance PC Build |

Boost your system's performance with the MSI PRO H610M-E mATX Motherboard available at . This feature-packed motherboard is designed to offer reliability and speed for users who demand the best, whether for gaming, content creation, or heavy multitasking. Featuring Intel Core 14th/13th/12th Gen processors compatibility, DDR5 memory, and enhanced graphics support, this motherboard is the perfect choice for building your next powerhouse.

Key Features:

  • Intel Core 14th/13th/12th Gen CPU Support: The LGA 1700 socket supports the latest Intel processors, ensuring fast processing speeds for any application, from gaming to video editing.
  • Intel H610 Chipset: This chipset provides strong system stability and fast data throughput for an optimized computing experience.
  • Future-Proof DDR5 Memory: With support for up to 96GB of DDR5 5600 MHz memory, enjoy fast multitasking, smooth gaming, and reliable performance. The motherboard also supports Intel XMP 3.0 overclocking for those looking to push their system even further.
  • Expansion Slots: Featuring 1x PCI-E x16 and 1x PCI-E x1 slots, you can expand your build with high-performance graphics cards or other peripherals.
  • Enhanced Graphics Options: The motherboard supports 4K HDMI output with HDR for superior visuals, plus VGA support for legacy devices. Enjoy seamless visuals with processors featuring integrated graphics.
  • Fast Storage Options: With 1x M.2 PCIe 3.0 x4 slot and 4x SATA 6G connectors, manage all your files, games, and programs with lightning-fast speeds.
  • USB Ports for Versatility: Equipped with 2x USB 3.2 Gen1 Type-A ports (front and rear), as well as 4x USB 2.0 ports for all your device connections.
  • Realtek Audio: 7.1-Channel High Definition Audio powered by Realtek ALC897 Codec ensures clear, immersive sound for gaming and multimedia use.
  • Networking Made Easy: Featuring Realtek RTL8111H Gigabit LAN, your system will stay connected with fast, reliable internet speeds.

Why Choose MSI PRO H610M-E for Your Build?

  • Future-Proof Technology: With support for Intel Core 14th/13th/12th Gen CPUs and DDR5 memory, this motherboard ensures you’re ready for the next generation of software and applications.
  • High-Performance Storage & Graphics: Whether you’re a gamer or a content creator, the M.2 SSD support and 4K HDMI port ensure that your system delivers top-tier performance.
  • 3-Year Warranty: Enjoy peace of mind with a 3-year warranty from MSI, ensuring your motherboard is built to last.

Perfect for Gamers & Content Creators: The MSI PRO H610M-E mATX Motherboard is a versatile option for both gamers looking to upgrade their build and professionals who need a reliable platform for content creation. With strong graphics support, fast data speeds, and ample expansion options, it’s an ideal motherboard for a range of uses.

Get Yours Today! Visit to purchase the MSI PRO H610M-E mATX Motherboard and take your PC build to the next level!
