MSI check_circle In Stock Model: PRO H610M-G DDR4

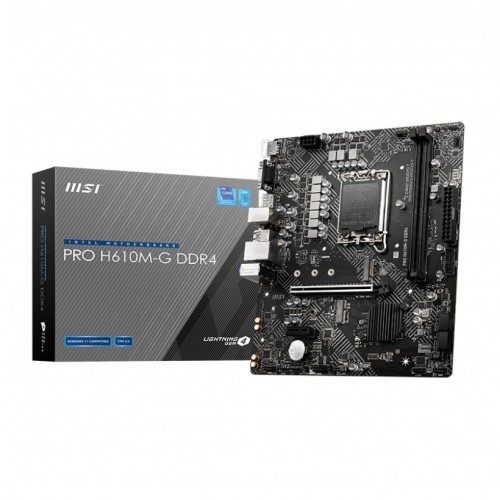

MSI PRO H610M-G DDR4 Micro-ATX

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 137 views
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Lightning Fast Experience: PCIe 4.0
  • Core Boost, Memory Boost, Audio Boost
12,600৳
EMI starts at 413৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Processor socket LGA1700
ChipsetIntel H610 Chipset
Form FactormATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)
AudioRealtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
Memory
TypeDDR4
Slots2x DDR4 memory slots
Supported MemorySupports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum MemorySupport up to 64GB
Graphics
Graphics1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI1x HDMI 2.1
USB (s)Intel H610 Chipset:
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)1x Intel I219V 1Gbps LAN controller
Supported Storage4x SATA 6Gb/s ports
1x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
Internal I/O PortsPOWER CONNECTORS:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

FAN CONNECTORS:
1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS:
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector

JUMPERS:
1x Clear CMOS jumper

LED FEATURES:
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED
TPM (Trusted Platform Module )1x TPM module connector
Warranty Details
Warranty Details3 years
Description

MSI PRO H610M-G DDR4 Micro-ATX Motherboard

Upgrade your PC build with the MSI PRO H610M-G DDR4 Micro-ATX Motherboard, designed to support the latest Intel Core 14th/13th/12th Gen processors. Offering exceptional value and performance, this motherboard is perfect for users seeking reliability and expandability in a compact form factor. Whether you're building a powerful work PC or a multimedia setup, the MSI PRO H610M-G ensures efficient performance and connectivity.


Key Features:

  • Compatible with Latest Intel CPUs:
    Supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors with the LGA 1700 socket for powerful computing.

  • Intel H610 Chipset:
    This chipset ensures stable system performance and support for various PCIe slots and memory speeds for seamless multitasking and system expansion.

  • Dual DDR4 Memory Slots:
    With 2 DDR4 memory slots, the board supports up to 64GB of RAM, enhancing overall system speed and efficiency for smooth multitasking.

  • High-Quality Graphics Support:
    The HDMI 2.1 port supports 4K 60Hz resolution, while the VGA and DisplayPort 1.4 ports offer versatile display options for different monitors.

  • PCIe Expansion:
    Includes a PCIe x16 slot (up to PCIe 4.0 x16) and a PCIe x1 slot, making it ideal for graphics cards and other expansion devices.

  • Multiple Storage Options:
    Enjoy fast data access with 4 SATA 6Gb/s ports and an M.2 slot (up to PCIe 3.0 x4) for additional storage devices. Perfect for expanding your storage capacity.

  • RGB & LED Connectors:
    Customize your PC with RGB LED and RAINBOW LED connectors, adding style to your build while keeping your system cool with EZ Debug LED indicators.


Perfect For:

  • Gaming Enthusiasts looking for a reliable motherboard with high graphics performance.
  • Content Creators who need a motherboard capable of handling multitasking and 4K video playback.
  • Professional Users who require stable and efficient system performance with ample memory and storage support.

Specifications:

  • Form Factor: mATX (9.29 x 7.95 in. / 23.6 cm x 20.2 cm)
  • Memory Support: Up to 64GB DDR4 (2133/2666/2933/3200 MHz)
  • Graphics Ports: HDMI 2.1, VGA, DisplayPort 1.4
  • USB Ports: 4x USB 3.2 Gen 1, 6x USB 2.0
  • Storage: 4x SATA 6Gb/s, 1x M.2 (PCIe 3.0 x4, SATA)
  • LAN: 1x Intel I219V 1Gbps
  • Audio: Realtek ALC892/897 7.1-Channel High Definition Audio
  • Warranty: 3 Years Manufacturer Warranty

Who Should Buy This:

  • Gamers: For smooth gaming experiences with powerful GPUs.
  • Content Creators: Perfect for multimedia work with high-resolution displays.
  • Budget Builders: Ideal for affordable yet powerful PC builds with future-proof support.

Why Buy This Product:

If you need an affordable yet feature-rich motherboard for your next build, the MSI PRO H610M-G DDR4 Micro-ATX is an excellent choice. It provides the right balance of price, performance, and features to make sure your system runs smoothly and stays up to date with the latest Intel processors.

Why Choose MSI PRO H610M-G?

The MSI PRO H610M-G DDR4 is an ideal choice for those who need a compact yet high-performance motherboard. It offers everything from advanced memory support to robust graphics capabilities, ensuring that your system stays responsive no matter the task. With high expandability options and future-proof technology, this motherboard is perfect for building a PC that meets your demands now and in the future.


Optimize your setup with the MSI PRO H610M-G and experience performance like never before! Visit to learn more about this motherboard.
