MSI check_circle In Stock Model: X870E GAMING PLUS WIFI

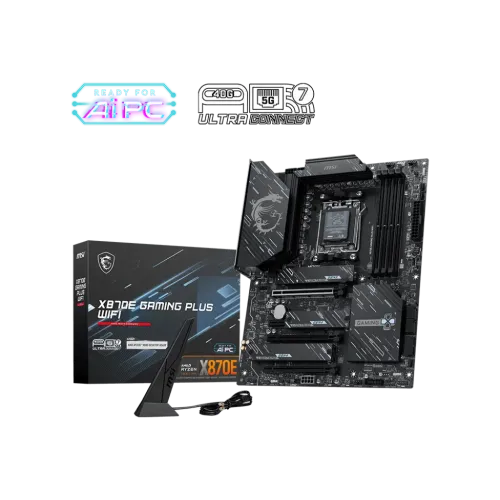

MSI X870E GAMING PLUS WIFI AM5 ATX DDR5 Motherboard

☆☆☆☆☆ 0 (0) reviews
| whatshot 0 Sold | remove_red_eye 63 views
  • Model: X870E GAMING PLUS WIFI
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
  • Graphics Output: 1x HDMI, 1x Type-C DisplayPort
  • Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
36,800৳
42,000৳
12% OFF
EMI starts at 1,206৳/month. View all 29 banks EMI plans >
Payment Terms
storefront
Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.
assignment_return
7-Day Easy ReturnHassle-free return policy on all products
headset_mic
Online SupportGet help anytime via Phone, Chat or Email
Specifications
Basic Information
Supported CPUSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Form FactorATX
243.84mmx304.8mm
AudioRealtek ALC897
7.1-Channel High Definition Audio
Expansion Slots
PCI3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket3x M.2
Memory
TypeDDR5
Slots4x DIMMs
Supported MemoryMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. Overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory256GB
Graphics
Graphics1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Connector & Ports
HDMI1x HDMI
USB (s)1x Type-C DisplayPort
LAN Port (s)Realtek 8126VB 5G LAN
Wireless Communication moduleWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth 5.4, MLO, 4KQAM
Supported StorageM.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )1x TPM pin header(Support TPM 2.0)
Others
Special Features4x EZ Debug LED
1x EZ Memory Detection LED
Warranty Details
Warranty Details3 Years
Description


MSI X870E GAMING PLUS WIFI AM5 ATX DDR5 Motherboard Price in Bangladesh

Unleashing Raw Performance: Built for AMD Ryzen Powerhouses

The MSI X870E GAMING PLUS WIFI is engineered to be the ultimate command center for your next-gen AMD build. Designed with full support for AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this beast uses the latest AM5 socket and X870E chipset to maximize performance, stability, and future-proofing. Whether you're an elite gamer, a streamer, or a hardcore creator, this motherboard delivers cutting-edge tech with fierce reliability. Its ATX form factor gives you ample room for expandability, perfect for high-end gaming rigs and performance PC setups.

DDR5 Memory Support for Sky-High Speeds and Massive Capacity

Say goodbye to bottlenecks! The X870E brings next-gen DDR5 support with blazing-fast memory speeds of up to 8200+ MHz (OC). With 4 DIMM slots supporting up to 256GB, you're all set for multitasking, content creation, and ultra-smooth gaming. Whether you're rocking single or dual-rank modules, the board intelligently adjusts for optimal performance. It supports Dual-Channel Mode, AMD EXPO, non-ECC, unbuffered, and even clock-driver bypass mode, giving serious tweakers the freedom they crave.

Triple PCIe x16 Slots with Gen 5 Readiness – Expand Like a Boss

Why settle for one when you can dominate with three? This motherboard comes stacked with 3x PCI-E x16 slots and 1x PCI-E x1 slot for maximum versatility. The primary PCIe slot (PCI_E1) supports up to Gen 5.0 x16, letting your RTX 40 series or RX 7000 series GPU run at full tilt. MSI didn’t stop there—the board smartly adjusts bandwidth depending on your CPU, offering PCIe 4.0 x8 or x4 for Ryzen 8700, 8600, 8400, and 8500/8300 series CPUs. Plus, support for PCIe 4.0 and 3.0 on other slots means your NVMe drives, capture cards, and expansion devices are all welcome to the party.

Blisteringly Fast Storage with PCIe 5.0 M.2 & RAID Magic

The storage game just changed. With three M.2 slots, including one Gen 5.0 x4 slot (CPU-driven), you’re looking at ultra-fast load times and smooth file handling. Whether you're editing 4K video or loading massive game files, the Gen 5 M.2 takes speed to another level. The two chipset-driven PCIe 4.0 x4 M.2 slots also support long 22110 form factor SSDs. And yes, it supports RAID 0/1/10 for SATA and RAID 0/1/5 for NVMe M.2 storage (RAID 5 exclusive to Ryzen 9000). That’s redundancy, performance, and speed—all rolled into one.

Ultra-HD Display Support with HDMI 2.1 & Type-C DP

Need a backup display output or running an APU? The X870E comes armed with HDMI 2.1, supporting up to 4K at 60Hz, and a USB4 Type-C port that doubles as a DisplayPort 1.4 output—delivering crisp 4K at 120Hz. Perfect for creators with multi-monitor setups or gamers using integrated graphics during GPU upgrades. It’s display versatility, the modern way.

Front, Back, and Center: High-Speed USBs for Every Need

You're not getting basic here—you're getting loaded. This board features a killer mix of USB 2.0, 5Gbps, 10Gbps, 20Gbps, and even a 40Gbps USB4 port. With USB Type-A and Type-C ports located both front and back, you can plug in high-speed SSDs, VR headsets, external GPUs, or Thunderbolt docks without sweating bandwidth. It’s I/O done right.
