MSI check_circle In Stock Model: B760M-E

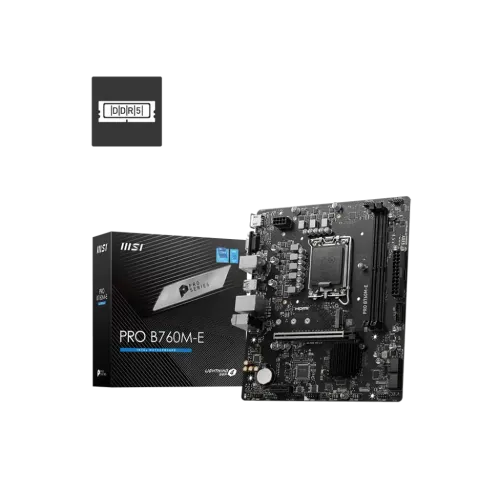

MSI PRO B760M-E DDR5 mATX

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 94 views

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB
Graphics Output: 1x HDMI, 1x VGA
Features: Realtek RTL8111H Gigabit LAN

13,100৳

14,430৳

9% OFF

EMI starts at 429৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 200mmx236.16mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket	1x M.2

Memory

Type	DDR5
Slots	2x DIMM
Supported Memory	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz
Maximum Memory	96GB

Graphics

1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA

Connector & Ports

HDMI	1x HDMI 1.4
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8111H Gigabit LAN
Supported Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)

Others

Special Features

1x RGB LED connector(JRGB)

Warranty Details

3 years

Description

MSI PRO B760M-E DDR5 m-ATX Motherboard – Enhance Your Performance

Sub Name: Intel 14th/13th Gen CPU Support, 96GB DDR5, PCIe 4.0, RAID Capability

Upgrade your PC build with the MSI PRO B760M-E DDR5 m-ATX Motherboard, designed to maximize performance and provide outstanding features for both gaming and professional use. Supporting Intel 14th/13th Gen Core processors, this motherboard is perfect for users who require cutting-edge technology. With DDR5 memory support and PCIe 4.0, it ensures faster speeds, smooth multitasking, and long-term scalability.

Who is this motherboard perfect for?

Gamers looking to boost their system’s speed and performance with next-gen memory and PCIe 4.0 support.
Content creators who need high memory capacity and reliable performance for intensive video editing, 3D rendering, and multitasking.
PC enthusiasts planning to build a future-proof system with a robust motherboard that can handle the latest hardware and software demands.

Why should you buy the MSI PRO B760M-E DDR5 m-ATX Motherboard?

Supports up to 96GB of DDR5 memory with overclocking speeds up to 6400MHz (OC), providing the ultimate in speed and performance.
Intel B760 chipset offers excellent compatibility with Intel 14th/13th Gen processors, ensuring you stay on top of the latest tech.
RAID support (RAID 0, RAID 1, RAID 5, RAID 10) for greater storage flexibility and performance.
Multiple PCIe slots for better expansion options, ensuring you can add a variety of components like graphics cards, storage drives, and more.
Built-in 7.1 channel Realtek ALC897 audio for crystal-clear sound, making it a great choice for gaming and entertainment.
Comprehensive I/O ports, including USB 3.2 Gen1 and HDMI 1.4, allowing for high-speed data transfer and easy connectivity to peripherals.

When is this motherboard not the right choice for you?

If you're building a basic entry-level PC, the advanced features and higher cost of this motherboard may not be necessary.
Extreme overclocking enthusiasts may want to look at a more specialized motherboard designed for extreme performance.

With a 3-year warranty, the MSI PRO B760M-E DDR5 m-ATX Motherboard offers long-lasting reliability and performance, making it a great investment for anyone serious about their PC setup.
