| Supported CPU | Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150) Supports Intel Turbo Boost 2.0 Technology |
| Chipset | Intel H81 |
| Form Factor | Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm Solid Capacitor design |
| BIOS | 32Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 1.1 Compliant wake up events SMBIOS 2.3.1 support CPU, DRAM Voltage multi-adjustment |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection |
| PCI | 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 2.0 x1 Slot |
| Type | Dual Channel DDR3/DDR3L Memory Technology |
| Slots | 2 x DDR3/DDR3L DIMM Slots |
| Supported Memory | Supports DDR3/DDR3L 1600 / 1333/1066 non-ECC, un-buffered memory |
| Maximum Memory | 16GB |
| Graphics | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600 Pixel Shader 5.0, DirectX 11.1 Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |
| Others | Max Shared Memory 1024MB |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| LAN Port (s) | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Supported Storage | 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Audio | HD Audio Jack: Line in / Front Speaker / Microphone |
| Internal I/O Ports | 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin) 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) |
| TPM (Trusted Platform Module ) | 1 x TPM Header 1 x SPI TPM Header |
| Others | D-Sub (s) 1 x D-Sub Port |
| Warranty Details | 3 years |

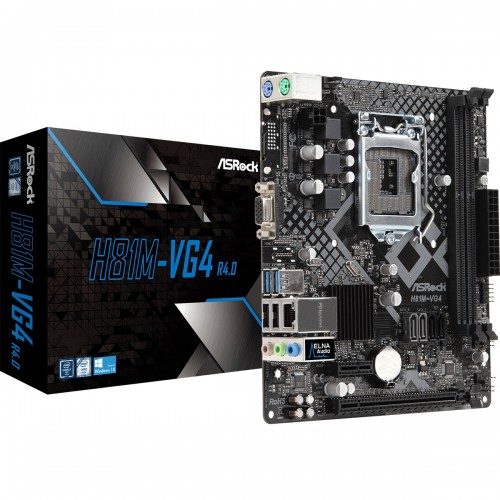

The ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard is built to support Intel's 4th Generation Core processors (Socket 1150), offering a stable and efficient platform for everyday computing. It supports dual-channel DDR3 1600 memory, ensuring smooth performance for multitasking and productivity. The motherboard includes a PCIe 2.0 x16 slot for dedicated graphics card installation and a PCIe 2.0 x1 slot for additional expansion options. Its integrated D-Sub display output makes it suitable for basic visual tasks. Compact in size with a Micro ATX form factor, the H81M-VG4 R4.0 fits easily into small PC cases while still providing essential connectivity and functionality. Ideal for budget-conscious users, this motherboard delivers reliable performance for home and office applications.
The latest price of ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard in Bangladesh is 0৳ You can buy the ASRock H81M-VG4 R4.0 4th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
