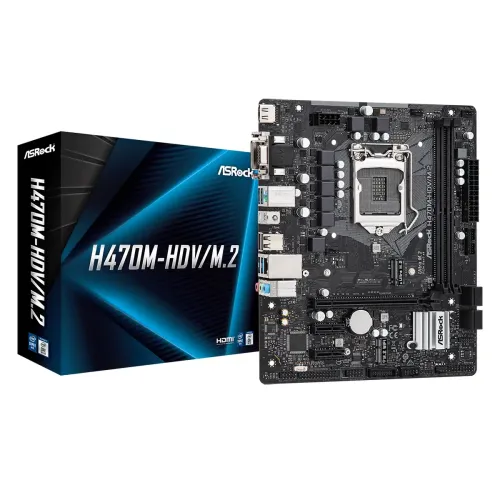

ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard

ASRock cancel Sold Out Model: H470M-HDV/M.2

ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard

Name: ASRock H470M-HDV/M.2 10th Gen Micro ATX Motherboard
Brand: ASRock
Price: 8800 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 106 views

Model: H470M-HDV/M.2
CPU Support: 10th Gen Intel Core Processors (Socket 1200)
RAM Support: DDR4 2933 MHz
Graphics Output: HDMI, DVI-D, D-Sub
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

8,800৳

9,900৳

11% OFF

EMI starts at 288৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 7 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel H470
Form Factor	Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm Solid Capacitor design
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection

Expansion Slots

PCI	1 x PCI Express 3.0 x16 Slot* 2 x PCI Express 3.0 x1 Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Memory

Type	DDR4
Slots	2 x DIMM Slots
Supported Memory	Dual Channel DDR4 Memory Technology Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots
Maximum Memory	64GB

Graphics

- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD Blu-ray Disc
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Connector & Ports

HDMI	1 x HDMI Port
LAN Port (s)	Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Supported Storage	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	1 x Print Port Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others	D-Sub (s) 1 x D-Sub port DVI-D (s) 1 x DVI-D port

Others

Special Features

ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

Warranty Details

3 years

Description

The ASRock H470M-HDV/M.2 Micro ATX Motherboard is built for users seeking a dependable and compact solution for Intel 10th Gen Core processors (Socket 1200). Supporting DDR4 2933MHz memory, it offers smooth multitasking and system performance. It features HDMI, DVI-D, and D-Sub ports, ensuring wide compatibility for multiple display setups. The Ultra M.2 slot (PCIe Gen3 x4 & SATA3) allows for lightning-fast storage speeds, while 4 SATA3 ports provide ample expansion for additional storage. With a Micro ATX form factor, this motherboard is perfect for compact PC builds, whether for work, entertainment, or light gaming. ASRock's high-quality components and advanced durability features ensure long-term stability and reliability. Whether you need a budget-friendly motherboard for daily computing or a solid base for a workstation, the ASRock H470M-HDV/M.2 is an excellent choice for an efficient and cost-effective PC build.
