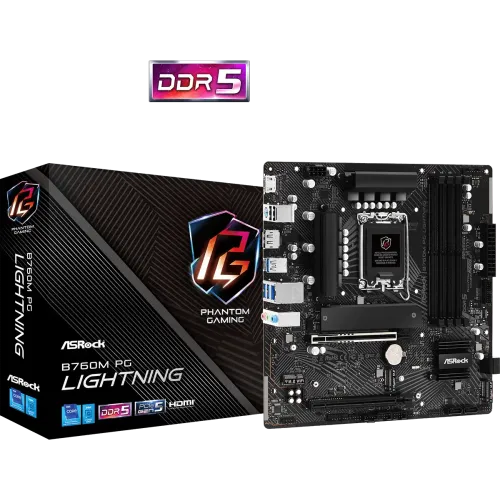

ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard

ASRock check_circle In Stock Model: B760M PG Lightning

ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard

Name: ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard
Brand: ASRock
Price: 16600 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 121 views

Model: B760M PG Lightning
Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5 Gigabit LAN, 7.1 CH HD Audio

16,600৳

18,260৳

9% OFF

EMI starts at 544৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT)
Chipset	Intel B760
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio

Expansion Slots

PCI	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) Supports AMD CrossFire
M.2 Socket	1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

Memory

Type	DDR5
Slots	4 x DDR5 DIMM Slots
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Supports Intel® Extreme Memory Profile (XMP) 3.0
Maximum Memory	256GB

Graphics

Intel Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Connector & Ports

HDMI	1x HDMI
USB (s)	1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)
LAN Port (s)	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Supported Storage	CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
TPM (Trusted Platform Module )	- 1 x SPI TPM Header
Others	Display Port (s) 1 x DisplayPort 1.4

Others

Special Features	Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer
Bundled Software	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer

Warranty Details

3 years

Description

The ASRock B760M PG Lightning DDR5 Micro ATX Motherboard is engineered to deliver powerful performance and reliability for Intel 14th, 13th, and 12th Gen Core processors. Equipped with four DDR5 RAM slots, it supports up to 256GB of memory with speeds reaching 7200+ MHz (OC), ensuring lightning-fast performance for gaming, content creation, and multitasking. This motherboard features two advanced video outputs, HDMI and DisplayPort, for stunning high-resolution visuals. Its 2.5 Gigabit LAN guarantees low-latency connectivity, perfect for competitive gaming and high-speed networking. Additionally, 7.1 Channel HD Audio delivers rich and immersive sound, enhancing your entertainment experience. Designed in a Micro ATX form factor, the B760M PG Lightning provides ample expansion options while fitting into compact PC cases. Whether you're building a gaming rig or a workstation, this motherboard offers cutting-edge features, high-speed connectivity, and exceptional durability, making it an ideal foundation for high-performance computing.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard?

The latest price of ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard in Bangladesh is 16,600৳ You can buy the ASRock B760M PG Lightning DDR5 14th, 13th and 12th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
