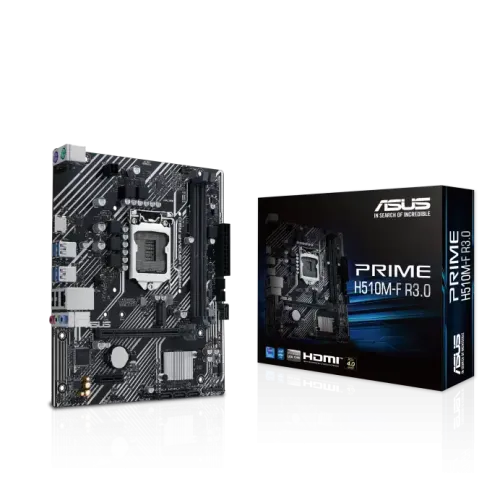

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

ASUS check_circle In Stock Model: PRIME H510M-F R3.0

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

Name: ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
Brand: ASUS
Price: 10300 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 118 views

Model: PRIME H510M-F R3.0
Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
Graphics Output: 1x HDMI port
Features: 1 x Realtek 1Gb Ethernet

10,300৳

11,000৳

6% OFF

EMI starts at 338৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H470 Chipset
Form Factor	mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
BIOS	128 Mb Flash ROM, UEFI AMI BIOS

Expansion Slots

PCI	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Memory

Type	DDR4
Slots	2 x DIMM
Supported Memory	3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
Maximum Memory	Max. 64GB

Graphics

Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Connector & Ports

HDMI	1x HDMI
USB (s)	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Internal I/O Ports	Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1 pin)

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Bundled Software	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Details

3 years

Description

The ASUS PRIME H510M-F R3.0 Micro-ATX motherboard is engineered for stability and efficiency, supporting 10th and 11th Gen Intel processors on the LGA1200 socket. It features dual-channel DDR4 memory support up to 64GB at 3200MHz (OC), ensuring smooth multitasking and performance for various applications. Equipped with an HDMI port for high-resolution visuals and Realtek 1Gb Ethernet for fast network connectivity, it provides a stable foundation for office work, gaming, and multimedia use. The ASUS PRIME series offers durability and reliable cooling solutions, making it an excellent choice for budget-conscious PC builders.
