| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | H510 |
| Form Factor | microATX 22.6cm x 21.1cm |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 2 x PCIe 3.0 x1 slots |
| Type | DDR4 |
| Supported Memory | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Graphics | 1 x D-Sub * Graphics specifications may vary between CPU types. ** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. *** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel 11th & 10th Gen Processors |
| HDMI | 1 x HDMI 2.0 |
| USB (s) | Rear USB:Total 4 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet |
| Supported Storage | Intel H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | Display Port (s) 1 x DisplayPort 1.4 D-Sub (s) 1 x D-Sub |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Warranty Details | 3 Years |

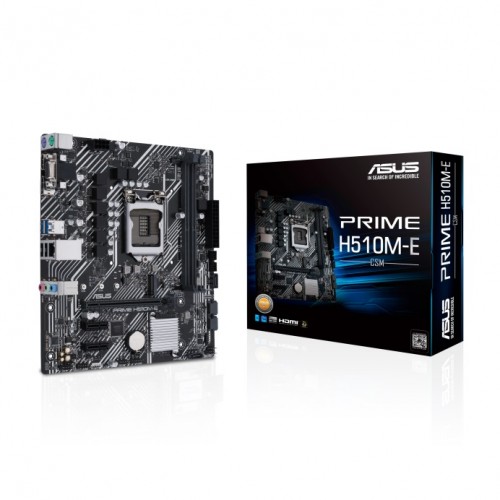

The Asus Prime H510M-E/CSM Micro ATX Motherboard is designed to bring out the best performance from Intel’s 11th and 10th Gen Core processors. Built on the Intel LGA 1200 socket, this motherboard supports the latest processors, allowing you to unlock impressive computing power for gaming, work, or general use.
Supporting PCIe 4.0, this motherboard ensures high-speed data transfer for graphics cards and storage devices, with a dedicated 32Gbps M.2 slot for ultra-fast SSD storage. Whether you’re running high-performance applications or handling large media files, this motherboard ensures you get the speed and stability you need.
To help keep your system running at peak performance, the PCH heatsink and Fan Xpert technology work together to provide advanced cooling, ensuring optimal temperature management for long gaming or work sessions. The inclusion of 5X Protection III offers robust safeguards against electrical surges, moisture, and other potential threats, ensuring that your system remains protected and operational even in challenging environments.
With support for DDR4 memory and ample connectivity options, including USB and PCIe slots, this motherboard is a solid choice for building a versatile, reliable, and future-proof system. Whether you're a gamer, content creator, or just in need of a dependable computer for everyday tasks, the Asus Prime H510M-E/CSM offers the features and protection to meet your needs.
The latest price of Asus Prime H510M-E/CSM Intel 11th and 10th Gen Micro ATX Motherboard in Bangladesh is 0৳ You can buy the Asus Prime H510M-E/CSM Intel 11th and 10th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
