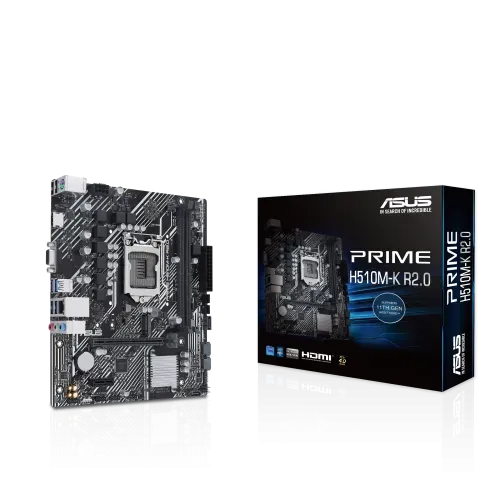

ASUS PRIME H510M-K R2.0 10th and 11th Gen DDR4 Motherboard

ASUS PRIME H510M-K R2.0 10th and 11th Gen DDR4 Motherboard Price in Bangladesh

The ASUS PRIME H510M-K R2.0 is a compact, reliable micro-ATX motherboard designed for 10th and 11th Generation Intel processors. Built with advanced features and robust performance, it is ideal for users seeking an efficient and budget-friendly platform for daily computing or entry-level gaming.

Key Features

Supported CPUs:

• Intel Socket LGA1200, compatible with 11th Gen and 10th Gen Intel Core, Pentium Gold, and Celeron processors.
• Support for Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 ensures enhanced performance.

Chipset & BIOS:

• Equipped with the Intel H470 Chipset.
• Features 128 Mb Flash ROM and UEFI AMI BIOS for a modern, easy-to-navigate interface.

Form Factor:

• Compact micro-ATX form factor measuring 8.9 inches x 8.0 inches (22.6 cm x 20.3 cm), suitable for small PC builds.

Expansion & Connectivity

Expansion Slots:

• PCIe 4.0/3.0 x16 slot for high-performance GPUs (PCIe 4.0 supported only by 11th Gen CPUs).
• PCIe 3.0 x1 slot for additional cards like Wi-Fi adapters or sound cards.

Storage Options:

• Supports 1 x M.2 slot (Key M) for high-speed SSDs (PCIe 3.0 x4 and SATA modes).
• 4 x SATA 6Gb/s ports for additional storage devices.

Memory Support:

• 2 x DIMM slots for DDR4 memory, supporting speeds up to 3200 MHz (OC).
• Maximum memory capacity of 64GB, with dual-channel memory architecture.

Display & Graphics

Graphics Outputs:

• 1 x HDMI 1.4 port (up to 4K@30Hz).
• 1 x VGA port for older monitors.

(Note: Only 11th Gen CPUs support HDMI 2.1 for 4K@60Hz resolution.)

Audio & Networking

Audio Features:

• Realtek 7.1 Surround Sound High Definition Audio CODEC for rich sound quality.
• Enhanced with Audio Shielding, Premium Audio Capacitors, and Dedicated Audio PCB Layers.

Networking:

• Realtek 1Gb Ethernet port ensures fast and reliable internet connectivity.

USB Connectivity

Rear Ports:

• 4 x USB 3.2 Gen 1 ports (Type-A).
• 2 x USB 2.0 ports (Type-A).

Front Headers:

• 1 x USB 3.2 Gen 1 header (supports 2 additional ports).
• 2 x USB 2.0 headers (support 4 additional ports).

Special Features

ASUS Exclusive Technologies:

• 5X PROTECTION III:

  • DIGI+ VRM for precise power control.
  • LANGuard, Overvoltage Protection, and SafeSlot Core for durability.
  • Stainless-Steel Back I/O for corrosion resistance.

• Q-Design:

  • Features like Q-DIMM, Q-LED Core, and Q-Slot for hassle-free upgrades.

• Thermal Solutions:

  • Aluminum heatsink for efficient cooling.

• RGB Lighting Control:

  • 1 x RGB header for customizing lighting effects.

Reasons to Buy

• Supports 10th and 11th Gen Intel processors with excellent performance.
• Compact design for space-efficient PC builds.
• Reliable audio and networking features.
• Multiple storage and USB options.

Reasons Not to Buy

• Limited to PCIe 3.0 speeds for 10th Gen CPUs.
• Lacks advanced features like Wi-Fi or PCIe 5.0.
