| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H510 Chipset |
| Form Factor | microATX: 22.6cm x 21.1cm |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 2 x PCIe 3.0 x1 slots |
| M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively. |
| Maximum Memory | 64GB (32 GB single DIMM capacity) |
| Graphics | 1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4/ 2.0 |
| HDMI | 1 x HDMI 2.0 |
| USB (s) | Rear USB:Total 4 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet |
| Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Audio | Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | Display Port (s) 1 x DisplayPort 1.4 D-Sub (s) 1 x D-Sub |
| Warranty Details | 3 Years |

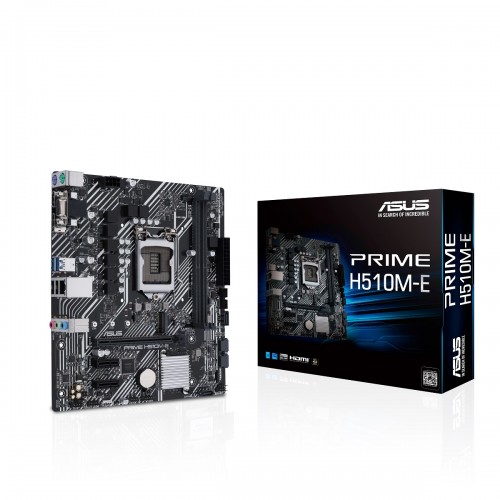

The Asus Prime H510M-E Micro ATX motherboard is an excellent choice for users looking to build a high-performance system with Intel 10th and 11th Gen processors. With LGA 1200 socket support, this motherboard offers a solid foundation for both personal and business computing needs. Its DDR4 memory support ensures efficient and reliable system performance, making it perfect for multitasking, web browsing, and productivity tasks.
Next-generation connectivity is one of the standout features of the Prime H510M-E. With PCIe 4.0 support, this motherboard offers faster data transfer rates, improving overall system performance and making it future-ready for high-speed storage devices and graphics cards. Whether you’re upgrading your system or building a new one, this motherboard offers excellent support for modern components.
Efficient and reliable cooling is key to any computer build, and the Asus Prime H510M-E delivers with its comprehensive cooling solutions. It includes multiple fan headers and the Asus Fan Xpert technology to automatically adjust fan speeds based on system temperatures, ensuring that your components remain cool during intense workloads or gaming sessions.
Additionally, the H510M-E features enhanced power solutions, providing stable power delivery to ensure your system runs smoothly and efficiently, even when under heavy load. The micro ATX form factor makes it suitable for a variety of cases, offering great flexibility while saving space.
Whether you're building a budget-friendly office PC, home workstation, or a multimedia machine, the Asus Prime H510M-E Micro ATX motherboard offers reliable performance, modern features, and future-proof connectivity to meet your everyday computing needs. With this motherboard, you'll enjoy a seamless experience in both professional and personal environments.
The latest price of Asus Prime H510M-E Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is 0৳ You can buy the Asus Prime H510M-E Intel 10th and 11th Gen Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
