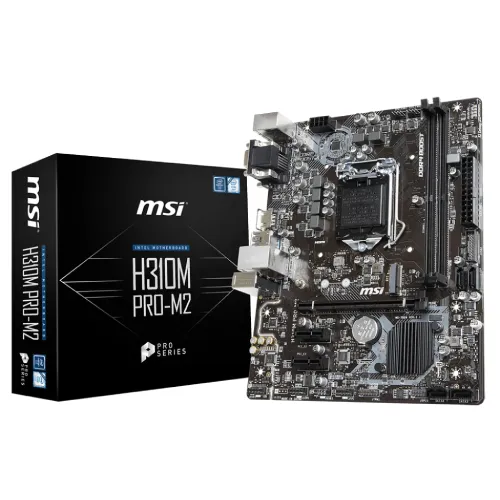

MSI H310M Pro-M2 Intel 9th Gen Motherboard

MSI check_circle In Stock Model: MSI H310M Pro-M2

MSI H310M Pro-M2 Intel 9th Gen Motherboard

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 129 views

Model: MSI H310M Pro-M2
Supports 9th/8th Gen Intel Core/Pentium Gold/Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666 MHz
Graphics Output: 1x HDMI, 1x DVI, 1x VGA
Features: Realtek ALC887 Codec, 1 x M.2 slot (Key M)

10,300৳

11,300৳

9% OFF

EMI starts at 338৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset	Intel H310 Chipset
Form Factor	m-ATX Form Factor 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
Audio	7.1-Channel High Definition Audio

Expansion Slots

PCI	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
M.2 Socket	1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices

Memory

Type	Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Slots	2 x DDR4 memory slots
Supported Memory	Supports DDR4 2666/ 2400/ 2133 MHz
Maximum Memory	32GB

Graphics

1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz

Connector & Ports

HDMI	1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
USB (s)	Intel H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
LAN Port (s)	1 x Intel I219-V Gigabit LAN controller
Supported Storage	4 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Audio	Realtek ALC887 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x TPM module connector
Others	1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60H

Warranty Details

03 years Warranty

Description

The MSI H310M Pro-M2 Micro-ATX Motherboard is a cost-effective and efficient solution for users building a reliable system with 9th or 8th Gen Intel Core, Pentium Gold, or Celeron processors. Featuring an LGA 1151 socket with H310 chipset, this motherboard provides stable performance while maintaining affordability.

Equipped with two DIMM slots, the MSI H310M Pro-M2 supports up to 32GB of DDR4 RAM, ensuring smooth multitasking and performance for everyday computing needs. The motherboard offers multiple display options, including HDMI, DVI, and VGA, making it compatible with a wide range of monitors. Its integrated Realtek ALC887 audio codec delivers clear and immersive sound for a better multimedia experience.

For faster storage solutions, this motherboard includes an M.2 slot, enabling users to install high-speed NVMe SSDs for improved system responsiveness and boot times. Its durable design, paired with MSI’s quality components, ensures longevity and reliable performance, making it an excellent choice for home offices, business workstations, and budget gaming PCs.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of MSI H310M Pro-M2 Intel 9th Gen Motherboard?

The latest price of MSI H310M Pro-M2 Intel 9th Gen Motherboard in Bangladesh is 10,300৳ You can buy the MSI H310M Pro-M2 Intel 9th Gen Motherboard at best price from our Website or visit any of our showrooms.
