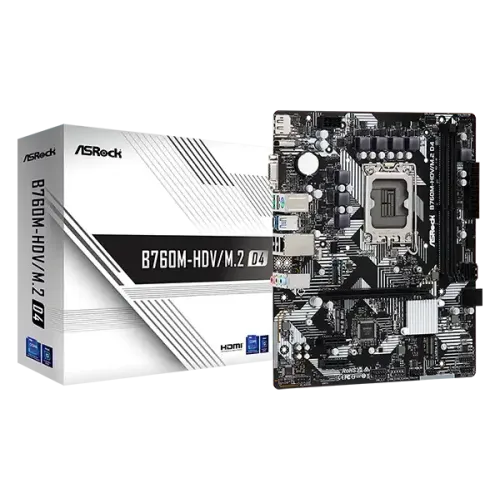

ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard

ASRock cancel Sold Out Model: B760M-HDV/M.2 D4

ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard

Name: ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard
Brand: ASRock
Price: 13500 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 81 views

Model: B760M-HDV/M.2 D4
Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB 5333+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
Features: Realtek 1G LAN

13,500৳

15,180৳

11% OFF

EMI starts at 443৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Supports 14th Gen, 13th & 12th Gen and next-gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset	Intel B760
Form Factor	Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Expansion Slots

PCI	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Memory

Type	DDR4
Slots	2
Supported Memory	Dual Channel DDR4 Memory Technology Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
Maximum Memory	64GB

Graphics

Intel Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Connector & Ports

HDMI	1x HDMI
USB (s)	1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 x USB 2.0 (2 Rear, 3 Front) * All USB ports support ESD Protection
LAN Port (s)	Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others	Display Port (s) 1x DisplayPort D-Sub (s) 1 x D-Sub

Others

Special Features	Rock-Solid Durability - 5+1+1 Power Phase EZ Update - ASRock Auto Driver Installer
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer

Warranty Details

3 years

Description

The ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard is a feature-rich, compact solution for Intel 14th, 13th, and 12th Gen processors, providing excellent performance and stability for home and professional users. Supporting up to 64GB DDR4 memory with 5333+ MHz overclocking, this motherboard ensures smooth multitasking and high-speed data processing. It features three video outputs: HDMI, DisplayPort, and D-Sub, making it highly adaptable for multiple display setups. With Realtek 1G LAN, you get stable and fast internet connectivity for gaming, streaming, and productivity. The M.2 slot enables high-speed NVMe SSD storage, improving boot times and application performance. Designed in a Micro ATX form factor, it fits into compact PC cases while delivering all the essential connectivity and expansion options. Whether you're building a budget-friendly gaming PC or a reliable office workstation, the ASRock B760M-HDV/M.2 D4 provides a solid foundation with cutting-edge technology at a great value.
