Gigabyte cancel Sold Out Model: B760M H DDR4

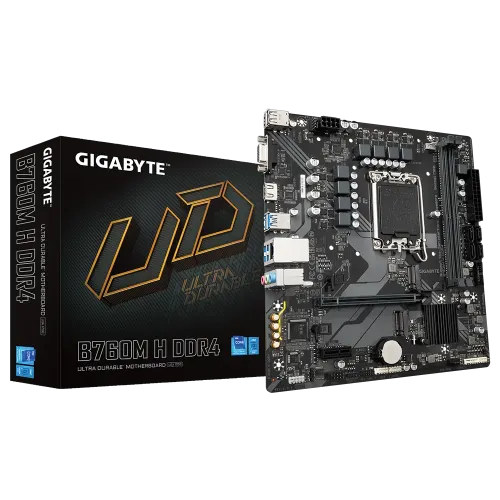

GIGABYTE B760M H DDR4 mATX Motherboard

Name: GIGABYTE B760M H DDR4 mATX Motherboard
Brand: Gigabyte
Price: 13700 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 78 views

Model: B760M H DDR4
Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
Graphics Output: 1x HDMI, 1 x D-Sub
Features: Realtek GbE LAN chip

13,700৳

14,870৳

8% OFF

EMI starts at 449৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type	DDR4
Slots	2
Supported Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 64GB (32 GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

Connector & Ports

HDMI	1x HDMI
USB (s)	- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others	1x D-Sub

Others

Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 years

Description

The GIGABYTE B760M H DDR4 Micro-ATX Motherboard is an excellent choice for users looking for reliability, efficiency, and affordability. Supporting Intel's 14th, 13th, and 12th Gen processors, this LGA1700-based motherboard ensures high compatibility with modern CPUs, making it ideal for gaming rigs, office setups, and home PCs.

With two DDR4 DIMM slots supporting up to 64GB of RAM at speeds of 3200MHz, this motherboard guarantees smooth multitasking, fast load times, and improved system responsiveness. Whether you're gaming, working with creative applications, or simply handling day-to-day computing tasks, the B760M H DDR4 motherboard delivers solid performance.

For display connectivity, the motherboard is equipped with both HDMI and D-Sub (VGA) ports, allowing users to connect to modern and legacy display devices effortlessly. This makes it suitable for multi-monitor setups, enhancing productivity and gaming experiences.

Network stability is enhanced with the Realtek GbE LAN chip, ensuring high-speed, low-latency connections for uninterrupted gaming, streaming, and professional workloads.

Built with GIGABYTE Ultra Durable components, the B760M H DDR4 motherboard provides excellent durability, power efficiency, and long-lasting performance. It also incorporates advanced cooling features and solid power delivery, ensuring stable operation even under heavy workloads.

If you're looking for a cost-effective yet powerful motherboard that balances performance, reliability, and future-proofing, the GIGABYTE B760M H DDR4 is a fantastic choice for your next PC build.
