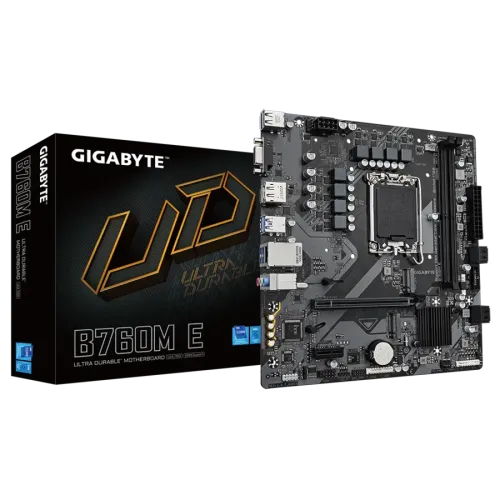

GIGABYTE B760M E DDR5 Micro ATX Motherboard

Gigabyte check_circle In Stock Model: B760M E

GIGABYTE B760M E DDR5 Micro ATX Motherboard

Name: GIGABYTE B760M E DDR5 Micro ATX Motherboard
Brand: Gigabyte
Price: 14800 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 107 views

Model: B760M E
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 128GB 7200(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

14,800৳

16,500৳

10% OFF

EMI starts at 485৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Memory

Type	DDR5
Slots	2
Supported Memory	Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory module
Maximum Memory	Supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Graphics

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

Connector & Ports

HDMI	1 x HDMI port
USB (s)	Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others	Display Port (s) 1 x DisplayPort D-Sub (s) 1 x D-Sub port

Others

Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 years Warranty

Description

The GIGABYTE B760M E DDR5 Micro-ATX Motherboard is an excellent choice for users looking to build a high-performance PC with the latest Intel processors. Compatible with Intel’s 14th, 13th, and 12th Gen CPUs, this LGA1700-based motherboard ensures top-tier processing power for gaming, creative work, and productivity tasks.

One of the standout features of this motherboard is its support for DDR5 memory, allowing for a maximum of 128GB at speeds of up to 7200MHz (OC). This ensures ultra-fast data transfer rates, improved multitasking capabilities, and a smoother overall experience, whether you're playing demanding games, rendering high-resolution videos, or handling intensive workloads.

For graphics connectivity, the B760M E DDR5 motherboard is equipped with HDMI, DisplayPort, and D-Sub ports, ensuring compatibility with both modern and older display setups. Whether you're using a high-refresh-rate gaming monitor or a multi-monitor workstation, this motherboard provides the flexibility needed for any build.

Connectivity is enhanced by the Realtek GbE LAN chip, which provides high-speed, low-latency networking for online gaming, video streaming, and professional tasks. The Gigabyte Ultra Durable components ensure long-lasting reliability, enhanced cooling, and stable power delivery for consistent and efficient performance under heavy loads.

Built for enthusiasts and power users, the GIGABYTE B760M E DDR5 motherboard is a future-ready, high-speed, and durable choice for any PC build. Whether you're a gamer, content creator, or professional user, this motherboard delivers outstanding performance, ensuring your system runs at peak efficiency.
