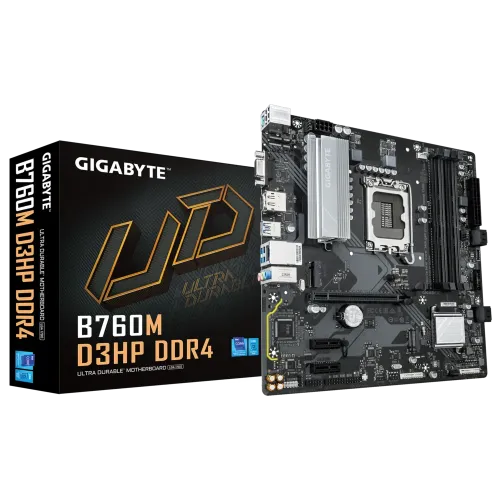

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

Gigabyte check_circle In Stock Model: B760M D3HP DDR4

GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard

Name: GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard
Brand: Gigabyte
Price: 16500 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 130 views

Model: B760M D3HP DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

16,500৳

17,450৳

5% OFF

EMI starts at 541৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Memory

Type	DDR4
Slots	4
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Graphics

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

Connector & Ports

HDMI	1 x HDMI port
USB (s)	Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Others	Display Port (s) 1 x DisplayPort D-Sub (s) 1 x D-Sub port

Others

Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 years Warranty

Description

The GIGABYTE B760M D3HP DDR4 Micro-ATX Motherboard is engineered to provide next-level performance, efficiency, and reliability, making it an ideal choice for gamers, content creators, and professionals looking to build a powerful and efficient system. Built with the Intel B760 chipset, this motherboard is fully compatible with Intel’s 14th, 13th, and 12th Gen processors, delivering superior processing power and multitasking capabilities.

With support for DDR4 memory up to 5333MHz (O.C.) and a maximum capacity of 128GB, this motherboard ensures high-speed performance for demanding applications, high-resolution gaming, and intensive workloads. Whether you're gaming, streaming, editing videos, or handling 3D rendering, the B760M D3HP DDR4 offers smooth and responsive performance.

For graphics connectivity, the motherboard is equipped with HDMI, DisplayPort, and D-Sub outputs, allowing for multi-monitor setups and high-definition visuals. Whether you need 4K video playback, immersive gaming experiences, or professional graphic work, this motherboard delivers exceptional display quality.

Networking is powered by the Realtek GbE LAN chip, providing high-speed wired internet connectivity with speeds up to 1Gbps. This ensures stable and lag-free performance for online gaming, video conferencing, streaming, and data-intensive applications.

Built with GIGABYTE’s Ultra Durable technology, the B760M D3HP DDR4 is designed for long-term stability and performance. With high-quality components, efficient thermal management, and optimized power delivery, this motherboard keeps your system cool and running smoothly even under heavy loads.

Whether you're building a gaming rig, a workstation, or a productivity-focused PC, the GIGABYTE B760M D3HP DDR4 offers a reliable, high-performance, and future-proof platform for modern computing needs.
