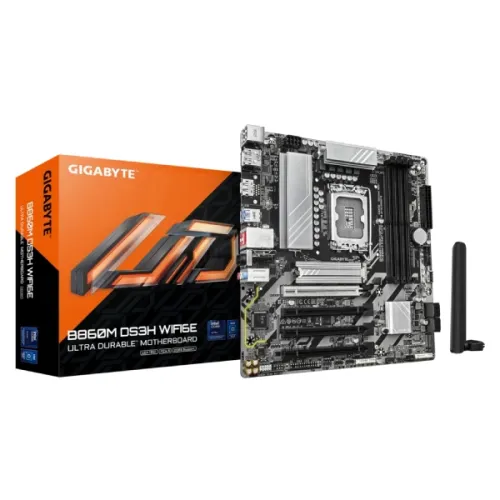

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Gigabyte check_circle In Stock Model: B860M DS3H WIFI6E

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Name: Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard
Brand: Gigabyte
Price: 24500 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 71 views

Model: B860M DS3H WIFI6E
Supported CPU: Intel Core Ultra Processors, LGA1851 socket
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066 (O.C)
Graphics Output: 2x DisplayPort, 1x HDMI port
Features: 2x M.2 slots, Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX211

24,500৳

26,950৳

9% OFF

EMI starts at 803৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset	Intel B860 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time

Connector & Ports

HDMI	1 x HDMI port
USB (s)	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others	2 x DisplayPort

Others

Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 Year

Description

The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard is built for power users, gamers, and professionals looking for exceptional computing power, ultra-fast memory speeds, and advanced connectivity options. Powered by the Intel B860 chipset, this motherboard supports Intel Core Ultra processors on the LGA1851 socket, delivering reliable and efficient performance for demanding workloads.

One of its standout features is its support for DDR5 memory, allowing for up to 256GB of high-speed RAM with overclocking capabilities reaching 9066MHz. This ensures blazing-fast load times, smoother multitasking, and optimal system responsiveness, making it perfect for gaming, video editing, and intensive workloads.

For graphics and display connectivity, the motherboard includes two DisplayPorts and one HDMI port, offering high-resolution output and multi-monitor support. This ensures immersive visuals and a seamless gaming or creative experience.

Connectivity is a strong suit of the B860M DS3H WIFI6E, featuring Intel Wi-Fi 6E AX211, ensuring lightning-fast wireless speeds, lower latency, and stable connections. Additionally, the Realtek 2.5GbE LAN chip provides high-speed wired networking, essential for low-latency gaming, smooth streaming, and professional workloads.

With two PCIe 4.0 M.2 slots, users can take advantage of ultra-fast storage solutions, significantly improving boot times, data transfer speeds, and application responsiveness. The robust power delivery system and enhanced cooling solutions ensure system stability and long-term durability, even under high-performance conditions.

Overall, the Gigabyte B860M DS3H WIFI6E Micro ATX Motherboard is an exceptional choice for gamers, content creators, and professionals who need a future-ready, high-performance motherboard with cutting-edge technology and premium connectivity features.
