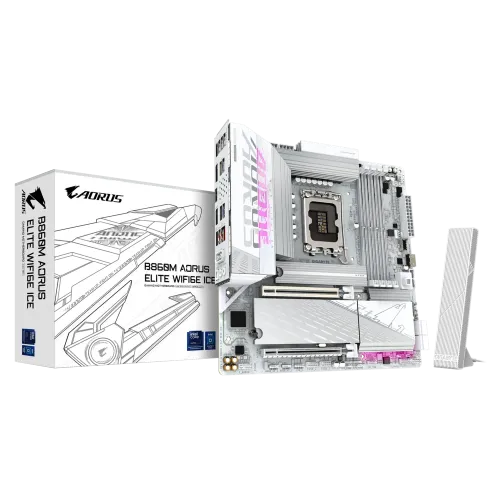

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

Gigabyte check_circle In Stock Model: B860M AORUS ELITE WIFI6E ICE

GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard

Name: GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard
Brand: Gigabyte
Price: 34500 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 134 views

Model: B860M AORUS ELITE WIFI6E ICE
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Socket
Supported RAM: 4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Graphics Output: 2x HDMI, 1x DisplayPort, 1 x USB4 USB Type-C port
Features: 3x M.2, Wi-Fi 6E, Bluetooth 5.3

34,500৳

37,950৳

9% OFF

EMI starts at 1,131৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	Intel Core Ultra Processors L3 cache
Chipset	Intel B860 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
M.2 Socket	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
Maximum Memory	Up to 256 GB (64 GB single DIMM capacity)

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.(Graphics specifications may vary depending on CPU support.)

Support for up to quad-display at the same time

Connector & Ports

HDMI	2 x HDMI
USB (s)	CPU: - 1 x USB4 USB Type-C port on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	1 x front panel audio header 2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x USB4® USB Type-C® port (DisplayPort) 1 x HDMI port 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others	1 x DisplayPort

Others

Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Details

3 Year Warranty

Description

The GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard is a high-performance motherboard tailored to meet the needs of gamers, content creators, and power users who demand top-tier performance. Built to support the latest Intel Core Ultra Processors (Series 2), the B860M AORUS ELITE ensures seamless compatibility with cutting-edge technologies for a future-proof computing experience.

With support for DDR5 memory up to 9200MHz (O.C.), this motherboard offers blazing-fast speeds, making it an ideal choice for gaming and multimedia editing. Whether you're playing high-performance games or handling intensive workloads, the B860M AORUS ELITE provides smooth and responsive performance.

This motherboard comes equipped with 3x M.2 slots, enabling you to install high-speed NVMe SSDs for lightning-fast data access. With PCIe 5.0 support, it ensures your graphics card, storage devices, and other components can operate at their full potential.

For connectivity, the B860M AORUS ELITE features Wi-Fi 6E for ultra-fast wireless internet speeds and Bluetooth 5.3 for seamless connectivity with peripherals. It also boasts a USB4 Type-C port, offering high-speed data transfer, as well as 2x HDMI and 1x DisplayPort to connect multiple monitors for an enhanced visual experience.

The B860M AORUS ELITE also incorporates advanced cooling solutions, ensuring your system stays cool even under heavy workloads, with optimized thermal performance for long-lasting reliability.

Whether you're building a gaming rig, high-performance workstation, or multimedia creation setup, the GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard delivers superior performance, advanced connectivity, and robust future-proof features, making it an excellent choice for any demanding user.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard?

The latest price of GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard in Bangladesh is 34,500৳ You can buy the GIGABYTE B860M AORUS ELITE WIFI6E ICE LGA1851 Micro ATX Motherboard at best price from our Website or visit any of our showrooms.
