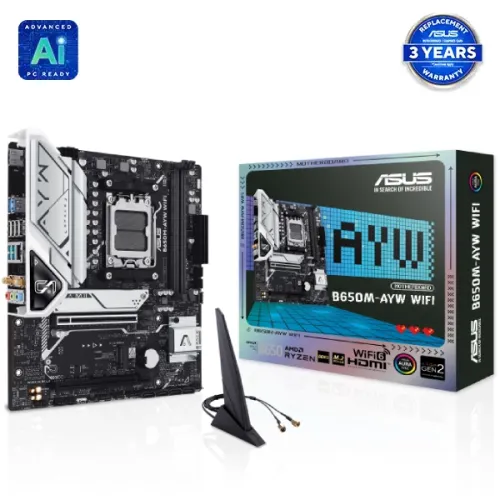

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

ASUS check_circle In Stock Model: B650M-AYW WIFI

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

Name: ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard
Brand: ASUS
Price: 20200 BDT
Availability: InStock
Rating: 1 (1 reviews)

☆☆☆☆☆ 0 (0) reviews

| whatshot 0 Sold | remove_red_eye 137 views

Model: B650M-AYW WIFI
Supported CPU: Ryzen 9000 & 8000 & 7000 Series Processors for Socket AM5
Supported Memory: 2x DIMM slots, Max. 96GB DDR5, Up to 8000+MT/s (OC)
Graphics Output: 1 x HDMI port, Storage: 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: 1 x 2.5Gb LAN, WiFi 6, PCIe 5.0 slots, Two-Way AI Noise Cancelation

20,200৳

22,030৳

8% OFF

EMI starts at 662৳/month. View all 29 banks EMI plans >

Payment Terms

storefront

Pick Up AvailableShop- 420, Level- 4, Computer City Center (Multiplan Center), New Elephant Road, Dhaka, Bangladesh.

assignment_return

7-Day Easy ReturnHassle-free return policy on all products

Online SupportGet help anytime via Phone, Chat or Email

Specifications

Basic Information

Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B650 Chipset
Form Factor	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers

Expansion Slots

PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
M.2 Socket	Total supports 2 x M.2 slots AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

Memory

Type	DDR5
Slots	4 x DIMM
Supported Memory	p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	96GB

Graphics

1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.

Connector & Ports

HDMI	1 x HDMI
USB (s)	Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	WiFi 6
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	3 x Audio jacks
Internal I/O Ports	Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header

Others

Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Warranty Details

3 Years

Description

The ASUS B650M-AYW WIFI is a feature-rich Micro-ATX motherboard designed to harness the power of AMD’s Ryzen 9000, 8000, and 7000 Series processors with the AM5 socket. Built for next-gen gaming and high-performance computing, this motherboard supports ultra-fast DDR5 memory up to 96GB, reaching speeds of 8000+ MT/s (OC) for superior multitasking and responsiveness.

With PCIe 5.0 slots, the B650M-AYW WIFI delivers high-speed data transfers, ensuring maximum performance for the latest GPUs and NVMe storage devices. The dual M.2 slots and four SATA 6Gb/s ports provide ample storage expansion options, making it a perfect choice for gamers, content creators, and professionals who need fast and reliable storage solutions.

This motherboard is equipped with WiFi 6 and 2.5Gb LAN, offering low-latency, high-speed networking for smooth gaming and efficient workflow. The AI-powered Two-Way Noise Cancellation enhances in-game communication and streaming by eliminating background noise for crystal-clear audio. With an HDMI port, users can enjoy stunning display output on high-resolution screens.

Designed with premium components and ASUS durability, the B650M-AYW WIFI ensures long-lasting stability and performance. Whether you're building a powerful gaming rig or a professional workstation, this compact yet powerful motherboard is built to deliver exceptional performance and future-proof connectivity.

Reviews (0)

☆☆☆☆☆ No reviews yet

Q&A (0)

What is the price of ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard?

The latest price of ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard in Bangladesh is 20,200৳ You can buy the ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard at best price from our Website or visit any of our showrooms.
