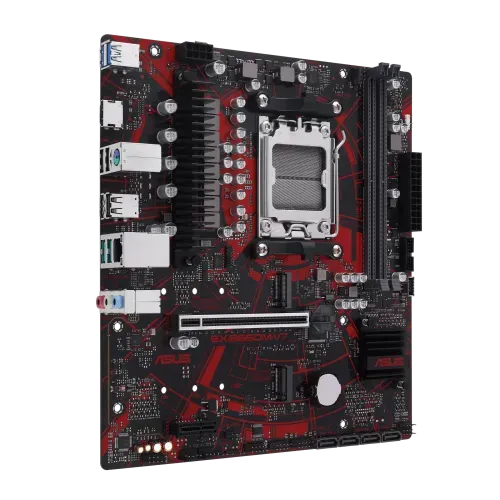

Asus EX-B650M-V7 AM5 micro-ATX DDR5 Motherboard

ASUS EX-B650M-V7 AM5 micro-ATX Motherboard: Cutting-Edge Performance for AMD Ryzen Processors

The ASUS EX-B650M-V7 AM5 micro-ATX motherboard is a feature-packed solution designed for AMD Ryzen 7000 and 8000 series processors. Equipped with the latest technologies such as PCIe 5.0, DDR5 memory support, and advanced thermal solutions, this motherboard is built for high-performance computing and gaming enthusiasts.

Overview

Built on the AMD B650 chipset, the ASUS EX-B650M-V7 AM5 motherboard offers exceptional processing capabilities, superior storage options, and reliable performance. Its micro-ATX form factor makes it suitable for compact builds without compromising on features. With a range of connectivity options and robust protection features, this motherboard ensures long-lasting reliability and seamless performance.

Key Features

Processor Compatibility

• Socket: AMD AM5
• Supported CPUs: AMD Ryzen 8000 and 7000 Series Desktop Processors
• Chipset: AMD B650
• Performance Enhancements: Optimized for AMD RAIDXpert2 and supports PCIe RAID configurations for advanced storage setups.

Memory Performance

• Type: DDR5 with dual-channel architecture
• Capacity: Supports up to 96GB RAM
• Overclocking: Memory speeds up to 8000+ MHz with AMD EXPO profiles and OptiMem II technology for better stability during overclocking.

Graphics Support

• Port: HDMI 2.1 for 4K@60Hz resolution, delivering stunning visuals for gaming or media playback.

Storage and Expansion

• M.2 Slots:
  • 1 x PCIe 5.0 x4 mode
  • 1 x PCIe 4.0 x4 mode
• SATA Ports: 4 x SATA 6Gb/s ports for additional storage options.
• Expansion Slots:
  • 1 x PCIe 4.0 x16 slot for GPUs
  • 1 x PCIe 4.0 x1 slot for additional devices.

Connectivity Options

• USB Ports:
  • Rear: 8 ports, including USB 3.2 Gen 2 and Gen 1.
  • Front: 7 ports, including USB Type-C and additional USB 3.2 Gen 1 headers.
• LAN: Realtek 2.5Gb Ethernet for ultra-fast and reliable networking.

Audio

• Realtek 7.1 Surround Sound CODEC
• Premium audio capacitors and audio shielding for crystal-clear sound output.

Thermal and Durability Features

• VRM heatsink design for efficient cooling during intensive tasks.
• ASUS 5X Protection III: Overvoltage protection, stainless-steel back I/O, SafeSlot Core+, and LANGuard for enhanced durability.
• Special features include luminous anti-moisture coating and USBGuard for extra protection in challenging environments.

Target Audience

This motherboard is perfect for PC builders, gamers, and professionals looking for a reliable and feature-rich micro-ATX motherboard. Its advanced connectivity, overclocking potential, and compact size make it ideal for gaming rigs, workstations, and compact setups.

Reasons to Buy

1. Supports AMD Ryzen 7000 and 8000 series processors with PCIe 5.0 for next-gen performance.
2. High-speed DDR5 memory support with overclocking capabilities.
3. Compact micro-ATX form factor with advanced cooling and durability features.
4. Extensive connectivity options, including USB Type-C, HDMI 2.1, and Realtek 2.5Gb Ethernet.
5. Bundled ASUS-exclusive software for customization and performance monitoring.
